Documentation for OASIS UDDI Specification TC
Definition Type: ComplexType
Name: instanceDetails
Namespace: urn:uddi-org:api_v3
Containing Schema: uddi_v3.xsd
Abstract
Collapse XSD Schema Diagram:

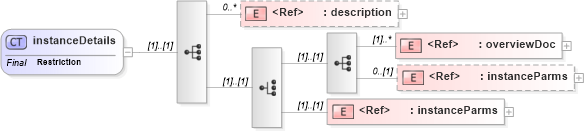

Drilldown into instanceParms in schema uddi_v3_xsd Drilldown into instanceParms in schema uddi_v3_xsd Drilldown into overviewDoc in schema uddi_v3_xsd Drilldown into description in schema uddi_v3_xsdXSD Diagram of instanceDetails in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:complexType name="instanceDetails" final="restriction">
    <xsd:sequence>
        <xsd:element ref="uddi:description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:choice>
            <xsd:sequence>
                <xsd:element ref="uddi:overviewDoc" maxOccurs="unbounded" />
                <xsd:element ref="uddi:instanceParms" minOccurs="0" />
            </xsd:sequence>
            <xsd:element ref="uddi:instanceParms" />
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
description uddi:description 0 unbounded
overviewDoc uddi:overviewDoc (1) unbounded
instanceParms uddi:instanceParms 0 (1)
instanceParms uddi:instanceParms (1) (1)
Collapse Derivation Tree:
Collapse References:
uddi:instanceDetails
