Definition Type: ComplexType
Name: operationalInfo
Namespace: urn:uddi-org:api_v3
Containing Schema: uddi_v3.xsd
Abstract

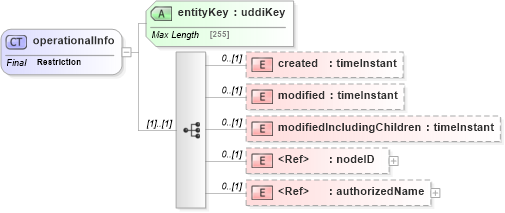

Collapse XSD Schema Diagram:
Drilldown into authorizedName in schema uddi_v3_xsd Drilldown into nodeID in schema uddi_v3_xsd Drilldown into modifiedIncludingChildren in schema uddi_v3_xsd Drilldown into modified in schema uddi_v3_xsd Drilldown into created in schema uddi_v3_xsd Drilldown into entityKey in schema uddi_v3_xsdXSD Diagram of operationalInfo in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:complexType name="operationalInfo" final="restriction">
    <xsd:sequence>
        <xsd:element name="created" type="uddi:timeInstant" minOccurs="0" />
        <xsd:element name="modified" type="uddi:timeInstant" minOccurs="0" />
        <xsd:element name="modifiedIncludingChildren" type="uddi:timeInstant" minOccurs="0" />
        <xsd:element ref="uddi:nodeID" minOccurs="0" />
        <xsd:element ref="uddi:authorizedName" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="entityKey" type="uddi:uddiKey" use="required" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
created uddi:created 0 (1)
modified uddi:modified 0 (1)
modifiedIncludingChildren uddi:modifiedIncludingChildren 0 (1)
nodeID uddi:nodeID 0 (1)
authorizedName uddi:authorizedName 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
entityKey uddi:entityKey Required
Collapse Derivation Tree:
Collapse References:
uddi:operationalInfo
