Documentation for OASIS UDDI Specification TC
Definition Type: ComplexType
Name: publisherAssertion
Namespace: urn:uddi-org:api_v3
Containing Schema: uddi_v3.xsd
Abstract
Collapse XSD Schema Diagram:

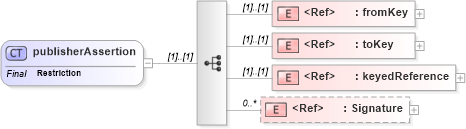

Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into keyedReference in schema uddi_v3_xsd Drilldown into toKey in schema uddi_v3_xsd Drilldown into fromKey in schema uddi_v3_xsdXSD Diagram of publisherAssertion in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:complexType name="publisherAssertion" final="restriction">
    <xsd:sequence>
        <xsd:element ref="uddi:fromKey" />
        <xsd:element ref="uddi:toKey" />
        <xsd:element ref="uddi:keyedReference" />
        <xsd:element ref="dsig:Signature" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fromKey uddi:fromKey (1) (1)
toKey uddi:toKey (1) (1)
keyedReference uddi:keyedReference (1) (1)
Signature dsig:Signature 0 unbounded
Collapse Derivation Tree:
Collapse References:
uddi:publisherAssertion
