Documentation for OASIS UDDI Specification TC
Definition Type: ComplexType
Name: serviceInfo
Namespace: urn:uddi-org:api_v3
Containing Schema: uddi_v3.xsd
Abstract
Collapse XSD Schema Diagram:

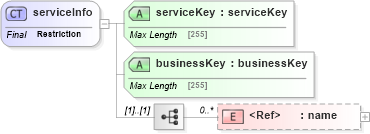

Drilldown into name in schema uddi_v3_xsd Drilldown into businessKey in schema uddi_v3_xsd Drilldown into serviceKey in schema uddi_v3_xsdXSD Diagram of serviceInfo in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:complexType name="serviceInfo" final="restriction">
    <xsd:sequence>
        <xsd:element ref="uddi:name" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="serviceKey" type="uddi:serviceKey" use="required" />
    <xsd:attribute name="businessKey" type="uddi:businessKey" use="required" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name uddi:name 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
serviceKey uddi:serviceKey Required
businessKey uddi:businessKey Required
Collapse Derivation Tree:
Collapse References:
uddi:serviceInfo
