Documentation for OASIS UDDI Specification TC
Definition Type: ComplexType
Name: tModel
Namespace: urn:uddi-org:api_v3
Containing Schema: uddi_v3.xsd
Abstract

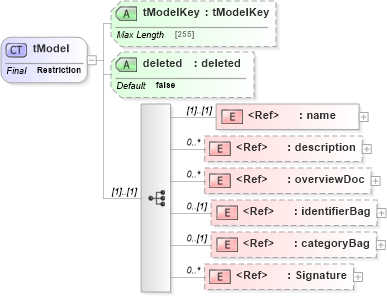

Collapse XSD Schema Diagram:
Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into categoryBag in schema uddi_v3_xsd Drilldown into identifierBag in schema uddi_v3_xsd Drilldown into overviewDoc in schema uddi_v3_xsd Drilldown into description in schema uddi_v3_xsd Drilldown into name in schema uddi_v3_xsd Drilldown into deleted in schema uddi_v3_xsd Drilldown into tModelKey in schema uddi_v3_xsdXSD Diagram of tModel in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:complexType name="tModel" final="restriction">
    <xsd:sequence>
        <xsd:element ref="uddi:name" />
        <xsd:element ref="uddi:description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="uddi:overviewDoc" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="uddi:identifierBag" minOccurs="0" />
        <xsd:element ref="uddi:categoryBag" minOccurs="0" />
        <xsd:element ref="dsig:Signature" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="tModelKey" type="uddi:tModelKey" use="optional" />
    <xsd:attribute name="deleted" type="uddi:deleted" use="optional" default="false" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name uddi:name (1) (1)
description uddi:description 0 unbounded
overviewDoc uddi:overviewDoc 0 unbounded
identifierBag uddi:identifierBag 0 (1)
categoryBag uddi:categoryBag 0 (1)
Signature dsig:Signature 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
tModelKey uddi:tModelKey Optional
deleted uddi:deleted false Optional
Collapse Derivation Tree:
Collapse References:
uddi:tModel
