Documentation for OASIS UDDI Specification TC
Definition Type: ComplexType
Name: tModelInfo
Namespace: urn:uddi-org:api_v3
Containing Schema: uddi_v3.xsd
Abstract

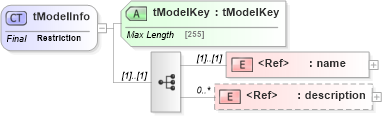

Collapse XSD Schema Diagram:
Drilldown into description in schema uddi_v3_xsd Drilldown into name in schema uddi_v3_xsd Drilldown into tModelKey in schema uddi_v3_xsdXSD Diagram of tModelInfo in schema uddi_v3_xsd (OASIS UDDI Specification TC)
Collapse XSD Schema Code:
<xsd:complexType name="tModelInfo" final="restriction">
    <xsd:sequence>
        <xsd:element ref="uddi:name" />
        <xsd:element ref="uddi:description" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="tModelKey" type="uddi:tModelKey" use="required" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name uddi:name (1) (1)
description uddi:description 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
tModelKey uddi:tModelKey Required
Collapse Derivation Tree:
Collapse References:
uddi:tModelInfo
