Definition Type: Element
Name: correlationSet
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/executable
Type: nsB:tCorrelationSet
Containing Schema: ws-bpel_executable.xsd
Abstract

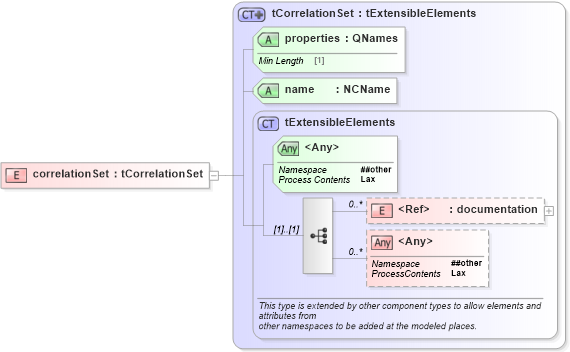

Collapse XSD Schema Diagram:
Drilldown into documentation in schema ws-bpel_executable_xsd Drilldown into tExtensibleElements in schema ws-bpel_executable_xsd Drilldown into name in schema ws-bpel_executable_xsd Drilldown into properties in schema ws-bpel_executable_xsd Drilldown into tCorrelationSet in schema ws-bpel_executable_xsdXSD Diagram of correlationSet in schema ws-bpel_executable_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:element name="correlationSet" type="tCorrelationSet" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation nsB:documentation 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
properties nsB:properties Required
name nsB:name Required
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
