Documentation for OASIS Web Services Business Process Execution Language (WSBPEL) TC
Definition Type: Element
Name: documentation
Namespace: http://docs.oasis-open.org/wsbpel/2.0/plnktype
Containing Schema: ws-bpel_plnktype.xsd
Abstract

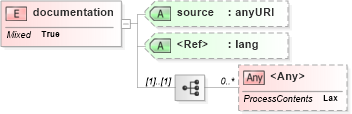

Collapse XSD Schema Diagram:
Drilldown into lang in schema xml_xsd Drilldown into source in schema ws-bpel_plnktype_xsdXSD Diagram of documentation in schema ws-bpel_plnktype_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:element name="documentation">
    <xsd:complexType mixed="true">
        <xsd:sequence>
            <xsd:any processContents="lax" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:attribute name="source" type="xsd:anyURI" />
        <xsd:attribute ref="xml:lang" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
source plnk:source (Optional)
lang nsA:lang (Optional)
