Documentation for OASIS Web Services Business Process Execution Language (WSBPEL) TC
Definition Type: Element
Name: from
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/abstract
Type: xsd-derived:tFrom
Containing Schema: ws-bpel_abstract_common_base.xsd
Abstract

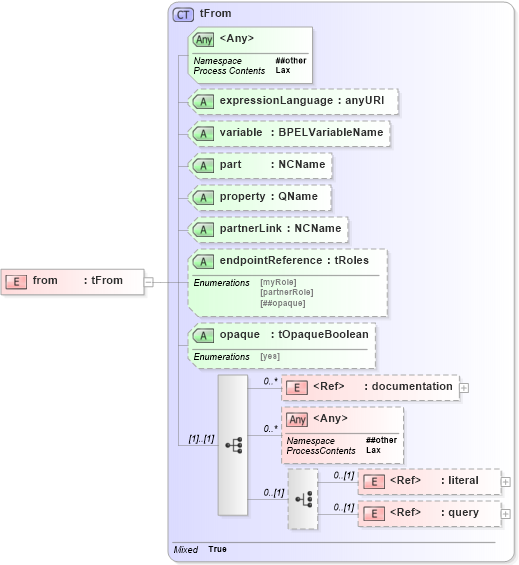

Collapse XSD Schema Diagram:
Drilldown into query in schema ws-bpel_abstract_common_base_xsd Drilldown into literal in schema ws-bpel_abstract_common_base_xsd Drilldown into documentation in schema ws-bpel_abstract_common_base_xsd Drilldown into opaque in schema ws-bpel_abstract_common_base_xsd Drilldown into endpointReference in schema ws-bpel_abstract_common_base_xsd Drilldown into partnerLink in schema ws-bpel_abstract_common_base_xsd Drilldown into property in schema ws-bpel_abstract_common_base_xsd Drilldown into part in schema ws-bpel_abstract_common_base_xsd Drilldown into variable in schema ws-bpel_abstract_common_base_xsd Drilldown into expressionLanguage in schema ws-bpel_abstract_common_base_xsd Drilldown into tFrom in schema ws-bpel_abstract_common_base_xsdXSD Diagram of from in schema ws-bpel_abstract_common_base_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:element name="from" type="tFrom" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation xsd-derived:documentation 0 unbounded
literal xsd-derived:literal 0 (1)
query xsd-derived:query 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
expressionLanguage xsd-derived:expressionLanguage (Optional)
variable xsd-derived:variable (Optional)
part xsd-derived:part (Optional)
property xsd-derived:property (Optional)
partnerLink xsd-derived:partnerLink (Optional)
endpointReference xsd-derived:endpointReference (Optional)
opaque xsd-derived:opaque (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
