Documentation for OASIS Web Services Business Process Execution Language (WSBPEL) TC
Definition Type: Element
Name: partnerLink
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/executable
Type: nsB:tPartnerLink
Containing Schema: ws-bpel_executable.xsd
Abstract

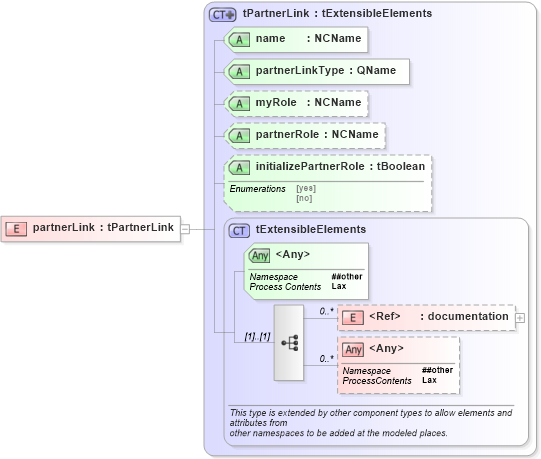

Collapse XSD Schema Diagram:
Drilldown into documentation in schema ws-bpel_executable_xsd Drilldown into tExtensibleElements in schema ws-bpel_executable_xsd Drilldown into initializePartnerRole in schema ws-bpel_executable_xsd Drilldown into partnerRole in schema ws-bpel_executable_xsd Drilldown into myRole in schema ws-bpel_executable_xsd Drilldown into partnerLinkType in schema ws-bpel_executable_xsd Drilldown into name in schema ws-bpel_executable_xsd Drilldown into tPartnerLink in schema ws-bpel_executable_xsdXSD Diagram of partnerLink in schema ws-bpel_executable_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:element name="partnerLink" type="tPartnerLink" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation nsB:documentation 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name nsB:name Required
partnerLinkType nsB:partnerLinkType Required
myRole nsB:myRole (Optional)
partnerRole nsB:partnerRole (Optional)
initializePartnerRole nsB:initializePartnerRole (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
