Documentation for OASIS Web Services Business Process Execution Language (WSBPEL) TC
Definition Type: Element
Name: source
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/abstract
Type: xsd-derived:tSource
Containing Schema: ws-bpel_abstract_common_base.xsd
Abstract

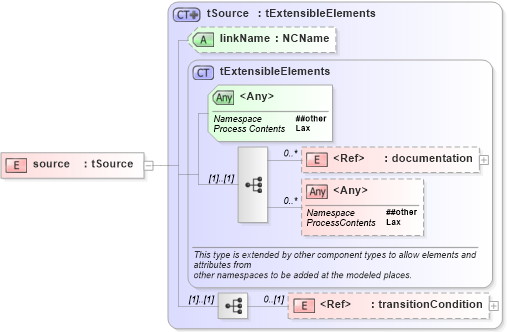

Collapse XSD Schema Diagram:
Drilldown into transitionCondition in schema ws-bpel_abstract_common_base_xsd Drilldown into documentation in schema ws-bpel_abstract_common_base_xsd Drilldown into tExtensibleElements in schema ws-bpel_abstract_common_base_xsd Drilldown into linkName in schema ws-bpel_abstract_common_base_xsd Drilldown into tSource in schema ws-bpel_abstract_common_base_xsdXSD Diagram of source in schema ws-bpel_abstract_common_base_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:element name="source" type="tSource" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation xsd-derived:documentation 0 unbounded
transitionCondition xsd-derived:transitionCondition 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
linkName xsd-derived:linkName Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Documentation for OASIS Web Services Business Process Execution Language (WSBPEL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
