Definition Type: ComplexType
Name: tOnAlarmEvent
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/abstract
Type: xsd-derived:tExtensibleElements
Containing Schema: ws-bpel_abstract_common_base.xsd
Abstract

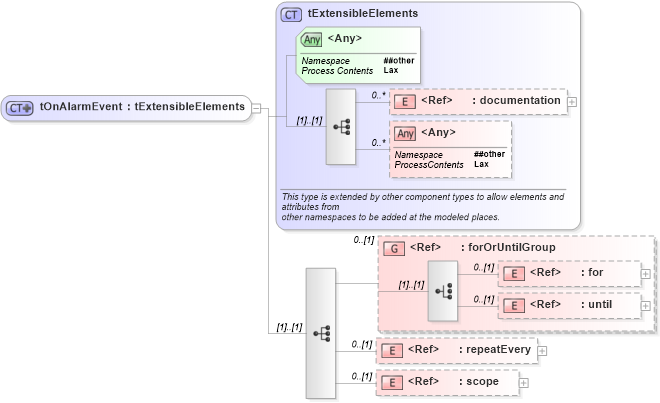

Collapse XSD Schema Diagram:
Drilldown into scope in schema ws-bpel_abstract_common_base_xsd Drilldown into repeatEvery in schema ws-bpel_abstract_common_base_xsd Drilldown into until in schema ws-bpel_abstract_common_base_xsd Drilldown into for in schema ws-bpel_abstract_common_base_xsd Drilldown into forOrUntilGroup in schema ws-bpel_abstract_common_base_xsd Drilldown into documentation in schema ws-bpel_abstract_common_base_xsd Drilldown into tExtensibleElements in schema ws-bpel_abstract_common_base_xsdXSD Diagram of tOnAlarmEvent in schema ws-bpel_abstract_common_base_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="tOnAlarmEvent">
    <xsd:complexContent>
        <xsd:extension base="tExtensibleElements">
            <xsd:sequence>
                <xsd:group ref="forOrUntilGroup" minOccurs="0" />
                <xsd:element ref="repeatEvery" minOccurs="0" />
                <xsd:element ref="scope" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation xsd-derived:documentation 0 unbounded
for xsd-derived:for 0 (1)
until xsd-derived:until 0 (1)
repeatEvery xsd-derived:repeatEvery 0 (1)
scope xsd-derived:scope 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
<xs:group> xsd-derived:forOrUntilGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
xsd-derived:onAlarm
