Definition Type: ComplexType
Name: tOnAlarmEvent
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/executable
Type: nsB:tExtensibleElements
Containing Schema: ws-bpel_executable.xsd
Abstract
Collapse XSD Schema Diagram:

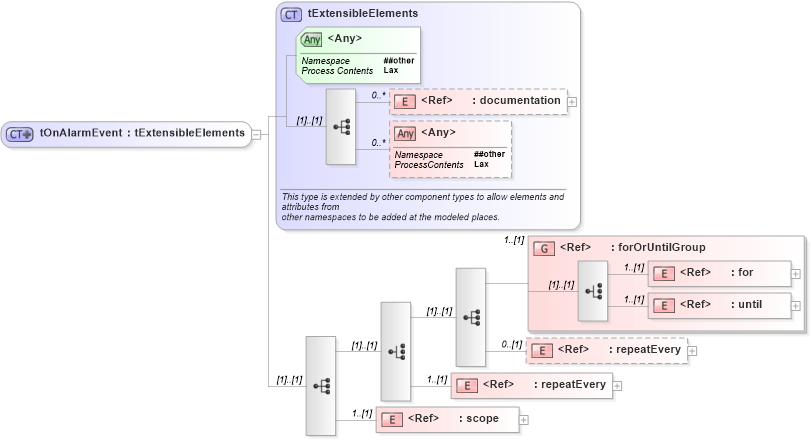

Drilldown into scope in schema ws-bpel_executable_xsd Drilldown into repeatEvery in schema ws-bpel_executable_xsd Drilldown into repeatEvery in schema ws-bpel_executable_xsd Drilldown into until in schema ws-bpel_executable_xsd Drilldown into for in schema ws-bpel_executable_xsd Drilldown into forOrUntilGroup in schema ws-bpel_executable_xsd Drilldown into documentation in schema ws-bpel_executable_xsd Drilldown into tExtensibleElements in schema ws-bpel_executable_xsdXSD Diagram of tOnAlarmEvent in schema ws-bpel_executable_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="tOnAlarmEvent">
    <xsd:complexContent>
        <xsd:extension base="tExtensibleElements">
            <xsd:sequence>
                <xsd:choice>
                    <xsd:sequence>
                        <xsd:group ref="forOrUntilGroup" minOccurs="1" />
                        <xsd:element ref="repeatEvery" minOccurs="0" />
                    </xsd:sequence>
                    <xsd:element ref="repeatEvery" minOccurs="1" />
                </xsd:choice>
                <xsd:element ref="scope" minOccurs="1" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation nsB:documentation 0 unbounded
for nsB:for 1 (1)
until nsB:until 1 (1)
repeatEvery nsB:repeatEvery 0 (1)
repeatEvery nsB:repeatEvery 1 (1)
scope nsB:scope 1 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
<xs:group> nsB:forOrUntilGroup 1 (1)
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
