Documentation for OASIS Web Services Business Process Execution Language (WSBPEL) TC
Definition Type: ComplexType
Name: tTo
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/abstract
Containing Schema: ws-bpel_abstract_common_base.xsd
Abstract

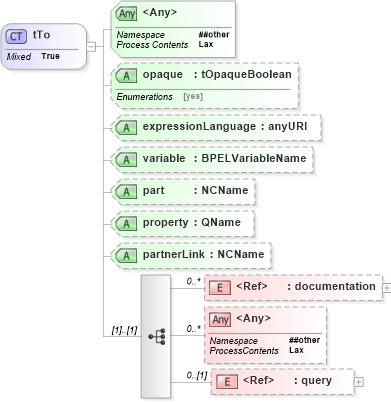

Collapse XSD Schema Diagram:
Drilldown into query in schema ws-bpel_abstract_common_base_xsd Drilldown into documentation in schema ws-bpel_abstract_common_base_xsd Drilldown into partnerLink in schema ws-bpel_abstract_common_base_xsd Drilldown into property in schema ws-bpel_abstract_common_base_xsd Drilldown into part in schema ws-bpel_abstract_common_base_xsd Drilldown into variable in schema ws-bpel_abstract_common_base_xsd Drilldown into expressionLanguage in schema ws-bpel_abstract_common_base_xsd Drilldown into opaque in schema ws-bpel_abstract_common_base_xsdXSD Diagram of tTo in schema ws-bpel_abstract_common_base_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="tTo" mixed="true">
    <xsd:sequence>
        <xsd:element ref="documentation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="query" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="opaque" type="xsd-derived:tOpaqueBoolean" />
    <xsd:attribute name="expressionLanguage" type="xsd-derived:anyURI" />
    <xsd:attribute name="variable" type="BPELVariableName" />
    <xsd:attribute name="part" type="xsd-derived:NCName" />
    <xsd:attribute name="property" type="xsd-derived:QName" />
    <xsd:attribute name="partnerLink" type="xsd-derived:NCName" />
    <xsd:anyAttribute namespace="##other" processContents="lax" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation xsd-derived:documentation 0 unbounded
query xsd-derived:query 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
opaque xsd-derived:opaque (Optional)
expressionLanguage xsd-derived:expressionLanguage (Optional)
variable xsd-derived:variable (Optional)
part xsd-derived:part (Optional)
property xsd-derived:property (Optional)
partnerLink xsd-derived:partnerLink (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
xsd-derived:to
