Definition Type: ComplexType
Name: tTo
Namespace: http://docs.oasis-open.org/wsbpel/2.0/process/executable
Containing Schema: ws-bpel_executable.xsd
Abstract

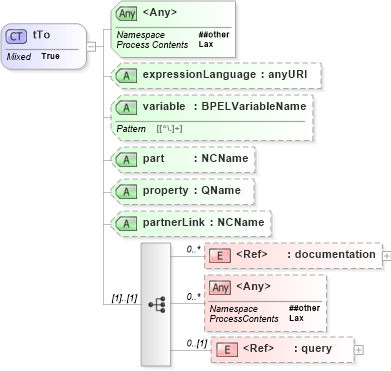

Collapse XSD Schema Diagram:
Drilldown into query in schema ws-bpel_executable_xsd Drilldown into documentation in schema ws-bpel_executable_xsd Drilldown into partnerLink in schema ws-bpel_executable_xsd Drilldown into property in schema ws-bpel_executable_xsd Drilldown into part in schema ws-bpel_executable_xsd Drilldown into variable in schema ws-bpel_executable_xsd Drilldown into expressionLanguage in schema ws-bpel_executable_xsdXSD Diagram of tTo in schema ws-bpel_executable_xsd (OASIS Web Services Business Process Execution Language (WSBPEL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="tTo" mixed="true">
    <xsd:sequence>
        <xsd:element ref="documentation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="query" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="expressionLanguage" type="xsd:anyURI" />
    <xsd:attribute name="variable" type="BPELVariableName" />
    <xsd:attribute name="part" type="xsd:NCName" />
    <xsd:attribute name="property" type="xsd:QName" />
    <xsd:attribute name="partnerLink" type="xsd:NCName" />
    <xsd:anyAttribute namespace="##other" processContents="lax" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation nsB:documentation 0 unbounded
query nsB:query 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
expressionLanguage nsB:expressionLanguage (Optional)
variable nsB:variable (Optional)
part nsB:part (Optional)
property nsB:property (Optional)
partnerLink nsB:partnerLink (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsB:to
