Documentation for OASIS Web Services Notification (WSN) TC
Definition Type: Element
Name: PublisherReference
Namespace: http://docs.oasis-open.org/wsn/br-2
Type: wsa:EndpointReferenceType
Containing Schema: br-2.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Collapse XSD Schema Diagram:

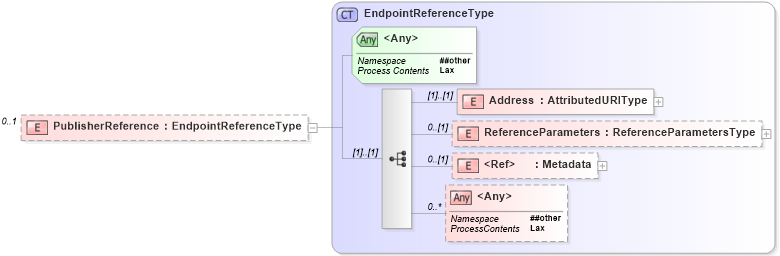

Drilldown into Metadata in schema ws-addr_xsd Drilldown into ReferenceParameters in schema ws-addr_xsd Drilldown into Address in schema ws-addr_xsd Drilldown into EndpointReferenceType in schema ws-addr_xsdXSD Diagram of PublisherReference in schema br-2_xsd (OASIS Web Services Notification (WSN) TC)
Collapse XSD Schema Code:
<xsd:element name="PublisherReference" type="wsa:EndpointReferenceType" minOccurs="0" maxOccurs="1" xmlns:xsd="http://www.w3.org/2001/XMLSchema" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Address wsa:Address (1) (1)
ReferenceParameters wsa:ReferenceParameters 0 (1)
Metadata wsa:Metadata 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
