Definition Type: ComplexType
Name: TopicNamespaceType
Namespace: http://docs.oasis-open.org/wsn/t-1
Type: wstop:ExtensibleDocumented
Containing Schema: t-1.xsd
Abstract

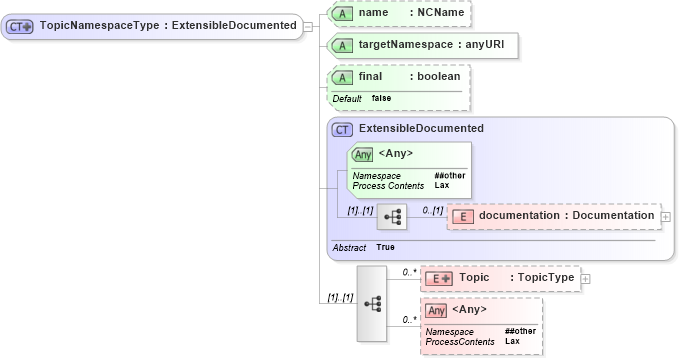

Collapse XSD Schema Diagram:
Drilldown into Topic in schema t-1_xsd Drilldown into documentation in schema t-1_xsd Drilldown into ExtensibleDocumented in schema t-1_xsd Drilldown into final in schema t-1_xsd Drilldown into targetNamespace in schema t-1_xsd Drilldown into name in schema t-1_xsdXSD Diagram of TopicNamespaceType in schema t-1_xsd (OASIS Web Services Notification (WSN) TC)
Collapse XSD Schema Code:
<xsd:complexType name="TopicNamespaceType">
    <xsd:complexContent>
        <xsd:extension base="wstop:ExtensibleDocumented">
            <xsd:sequence>
                <xsd:element name="Topic" minOccurs="0" maxOccurs="unbounded">
                    <xsd:complexType>
                        <xsd:complexContent>
                            <xsd:extension base="wstop:TopicType">
                                <xsd:attribute name="parent" type="wstop:ConcreteTopicExpression" />
                            </xsd:extension>
                        </xsd:complexContent>
                    </xsd:complexType>
                </xsd:element>
                <xsd:any namespace="##other" minOccurs="0" maxOccurs="unbounded" processContents="lax" />
            </xsd:sequence>
            <xsd:attribute name="name" type="xsd:NCName" />
            <xsd:attribute name="targetNamespace" type="xsd:anyURI" use="required" />
            <xsd:attribute name="final" type="xsd:boolean" default="false" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentation wstop:documentation 0 (1)
Topic wstop:Topic 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name wstop:name (Optional)
targetNamespace wstop:targetNamespace Required
final wstop:final false (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
wstop:TopicNamespace
