Documentation for OASIS XML Localisation Interchange File Format (XLIFF) TC
Definition Type: Element
Name: bx
Namespace: urn:oasis:names:tc:xliff:document:1.2
Containing Schema: xliff-core-1.2-strict.xsd
Abstract

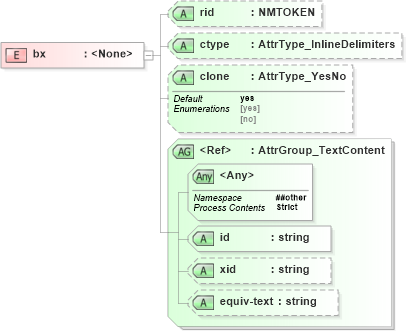

Collapse XSD Schema Diagram:
Drilldown into equiv-text in schema xliff-core-1_2-strict_xsd Drilldown into xid in schema xliff-core-1_2-strict_xsd Drilldown into id in schema xliff-core-1_2-strict_xsd Drilldown into AttrGroup_TextContent in schema xliff-core-1_2-strict_xsd Drilldown into clone in schema xliff-core-1_2-strict_xsd Drilldown into ctype in schema xliff-core-1_2-strict_xsd Drilldown into rid in schema xliff-core-1_2-strict_xsdXSD Diagram of bx in schema xliff-core-1_2-strict_xsd (OASIS XML Localisation Interchange File Format (XLIFF) TC)
Collapse XSD Schema Code:
<xsd:element name="bx">
    <xsd:complexType>
        <xsd:attribute name="rid" type="xsd:NMTOKEN" use="optional" />
        <xsd:attribute name="ctype" type="xlf:AttrType_InlineDelimiters" use="optional" />
        <xsd:attribute default="yes" name="clone" type="xlf:AttrType_YesNo" use="optional" />
        <xsd:attributeGroup ref="xlf:AttrGroup_TextContent" />
    </xsd:complexType>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
rid xlf:rid Optional
ctype xlf:ctype Optional
clone xlf:clone yes Optional
id xlf:id Required
xid xlf:xid Optional
equiv-text xlf:equiv-text Optional
<anyAttribute> Allowed namespace: '##other'
