Documentation for OASIS XML Localisation Interchange File Format (XLIFF) TC
Definition Type: Element
Name: phase
Namespace: urn:oasis:names:tc:xliff:document:1.2
Containing Schema: xliff-core-1.2-strict.xsd
Abstract

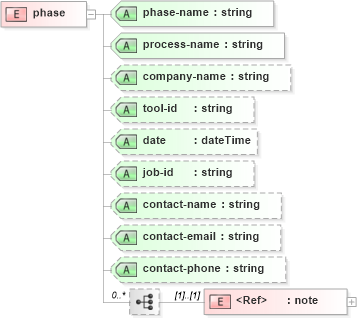

Collapse XSD Schema Diagram:
Drilldown into note in schema xliff-core-1_2-strict_xsd Drilldown into contact-phone in schema xliff-core-1_2-strict_xsd Drilldown into contact-email in schema xliff-core-1_2-strict_xsd Drilldown into contact-name in schema xliff-core-1_2-strict_xsd Drilldown into job-id in schema xliff-core-1_2-strict_xsd Drilldown into date in schema xliff-core-1_2-strict_xsd Drilldown into tool-id in schema xliff-core-1_2-strict_xsd Drilldown into company-name in schema xliff-core-1_2-strict_xsd Drilldown into process-name in schema xliff-core-1_2-strict_xsd Drilldown into phase-name in schema xliff-core-1_2-strict_xsdXSD Diagram of phase in schema xliff-core-1_2-strict_xsd (OASIS XML Localisation Interchange File Format (XLIFF) TC)
Collapse XSD Schema Code:
<xsd:element name="phase">
    <xsd:complexType>
        <xsd:sequence maxOccurs="unbounded" minOccurs="0">
            <xsd:element ref="xlf:note" />
        </xsd:sequence>
        <xsd:attribute name="phase-name" type="xsd:string" use="required" />
        <xsd:attribute name="process-name" type="xsd:string" use="required" />
        <xsd:attribute name="company-name" type="xsd:string" use="optional" />
        <xsd:attribute name="tool-id" type="xsd:string" use="optional" />
        <xsd:attribute name="date" type="xsd:dateTime" use="optional" />
        <xsd:attribute name="job-id" type="xsd:string" use="optional" />
        <xsd:attribute name="contact-name" type="xsd:string" use="optional" />
        <xsd:attribute name="contact-email" type="xsd:string" use="optional" />
        <xsd:attribute name="contact-phone" type="xsd:string" use="optional" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
note xlf:note (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
phase-name xlf:phase-name Required
process-name xlf:process-name Required
company-name xlf:company-name Optional
tool-id xlf:tool-id Optional
date xlf:date Optional
job-id xlf:job-id Optional
contact-name xlf:contact-name Optional
contact-email xlf:contact-email Optional
contact-phone xlf:contact-phone Optional
