Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: CarrierParty
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: cac:PartyType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract

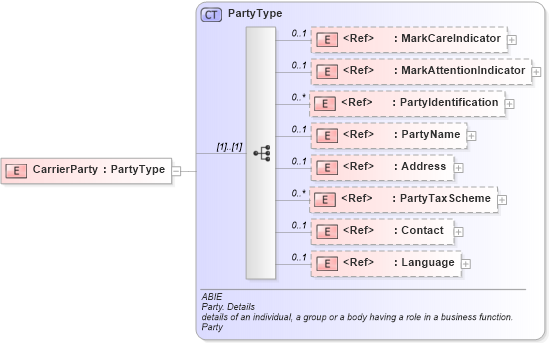

Collapse XSD Schema Diagram:
Drilldown into Language in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Contact in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into PartyTaxScheme in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Address in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into PartyName in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into PartyIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into MarkAttentionIndicator in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into MarkCareIndicator in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into PartyType in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of CarrierParty in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="CarrierParty" type="PartyType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MarkCareIndicator cbc:MarkCareIndicator 0 1
MarkAttentionIndicator cbc:MarkAttentionIndicator 0 1
PartyIdentification cac:PartyIdentification 0 unbounded
PartyName cac:PartyName 0 1
Address cac:Address 0 1
PartyTaxScheme cac:PartyTaxScheme 0 unbounded
Contact cac:Contact 0 1
Language cac:Language 0 1
Collapse Derivation Tree:
