Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: CommodityClassification
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: cac:CommodityClassificationType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract

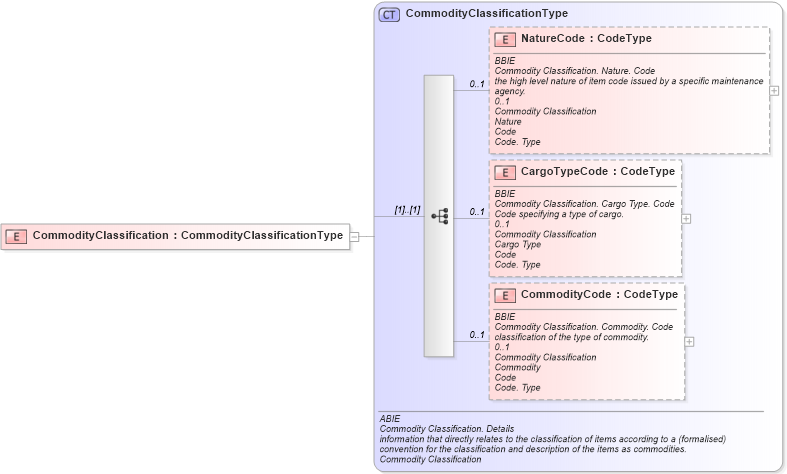

Collapse XSD Schema Diagram:
Drilldown into CommodityCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CargoTypeCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into NatureCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CommodityClassificationType in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of CommodityClassification in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="CommodityClassification" type="CommodityClassificationType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NatureCode cac:NatureCode 0 1
CargoTypeCode cac:CargoTypeCode 0 1
CommodityCode cac:CommodityCode 0 1
Collapse Derivation Tree:
