Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: ContractDocumentReference
Namespace: urn:oasis:names:specification:ubl:schema:xsd:OrderChange-1.0
Type: cac:DocumentReferenceType
Containing Schema: UBL-OrderChange-1.0.xsd
Abstract

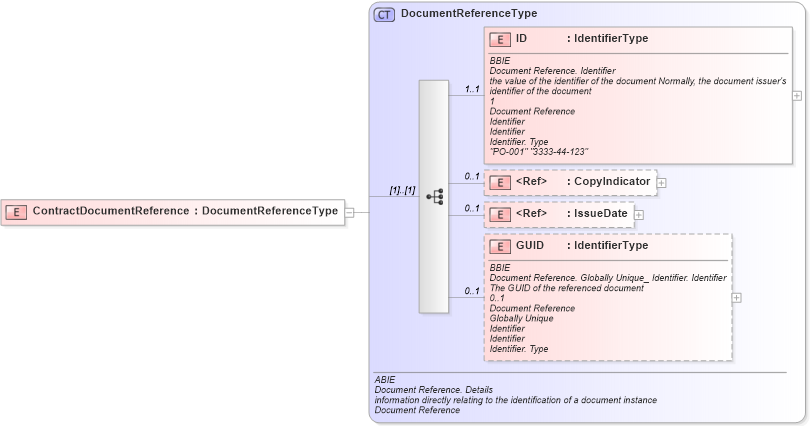

Collapse XSD Schema Diagram:
Drilldown into GUID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into DocumentReferenceType in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of ContractDocumentReference in schema ubl-orderchange-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="ContractDocumentReference" type="cac:DocumentReferenceType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cac:ID 1 1
CopyIndicator cbc:CopyIndicator 0 1
IssueDate cbc:IssueDate 0 1
GUID cac:GUID 0 1
Collapse Derivation Tree:
