Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: HazardousItemType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract
Documentation:
ABIE Hazardous Item. Details information about a hazardous item. Hazardous Item

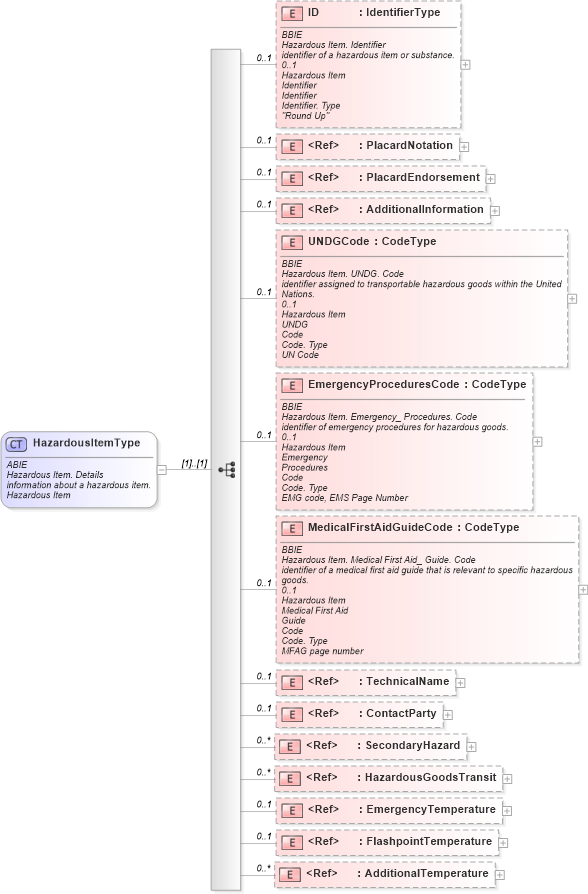

Collapse XSD Schema Diagram:
Drilldown into AdditionalTemperature in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into FlashpointTemperature in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into EmergencyTemperature in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into HazardousGoodsTransit in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into SecondaryHazard in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ContactParty in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into TechnicalName in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into MedicalFirstAidGuideCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into EmergencyProceduresCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into UNDGCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into AdditionalInformation in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into PlacardEndorsement in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into PlacardNotation in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ID in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of HazardousItemType in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="HazardousItemType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Hazardous Item. Details</ccts:DictionaryEntryName>
                <ccts:Definition>information about a hazardous item.</ccts:Definition>
                <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="ID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>identifier of a hazardous item or substance.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>"Round Up"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PlacardNotation" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. Placard Notation. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>the placard notation corresponding to the hazard class of the hazardous commodity. Can also be the hazard identification number of the orange placard (upper part) required on the means of transport.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Placard Notation</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:Examples>"5.1"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PlacardEndorsement" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. Placard Endorsement. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>the placard endorsement that is to be shown on the shipping papers for the hazardous commodity. Can also be used for the number of the orange placard (lower part) required on the means of transport.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Placard Endorsement</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:Examples>"2"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:AdditionalInformation" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. Additional_ Information. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>additional information regarding the hazardous substance. Can be used to hold information such as the type of regulatory requirements that apply to a description.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Information</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:Examples>"Must be stored away from flammable materials" "N.O.S. or a Waste Characteristics Code in conjunction with an EPA Waste Stream code"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="UNDGCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. UNDG. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>identifier assigned to transportable hazardous goods within the United Nations.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>UNDG</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>UN Code</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="EmergencyProceduresCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. Emergency_ Procedures. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>identifier of emergency procedures for hazardous goods.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Emergency</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Procedures</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>EMG code, EMS Page Number</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="MedicalFirstAidGuideCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. Medical First Aid_ Guide. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>identifier of a medical first aid guide that is relevant to specific hazardous goods.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Medical First Aid</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Guide</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>MFAG page number</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TechnicalName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. Technical_ Name. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>Full technical name of the specific hazardous substance.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Technical</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name_Text. Type</ccts:DataType>
                        <ccts:Examples>"Granular Sodium Chlorate WeedKiller"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ContactParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. Contact_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the hazardous item with details of an individual, a group or a body that is the contact in case of hazard incident.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Contact</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SecondaryHazard" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. Secondary Hazard</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the hazardous item with information about secondary hazards.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Secondary Hazard</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Secondary Hazard</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="HazardousGoodsTransit" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. Hazardous Goods Transit</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the hazardous item with information about the transportation of hazardous goods.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Hazardous Goods Transit</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Hazardous Goods Transit</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="EmergencyTemperature" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. Emergency_ Temperature. Temperature</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the hazardous item with the temperature at which emergency procedures apply during the handling of temperature-controlled hazardous goods.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Emergency</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Temperature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Temperature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="FlashpointTemperature" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. Flashpoint_ Temperature. Temperature</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the hazardous item with the lowest temperature at which the vapor of a combustible liquid can be made to ignite momentarily in air, known in hazardous goods procedures as the flashpoint.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Flashpoint</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Temperature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Temperature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AdditionalTemperature" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Item. Additional_ Temperature. Temperature</ccts:DictionaryEntryName>
                        <ccts:Definition>information providing details of temperatures relevant to the handling of hazardous goods.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Temperature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Temperature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cac:ID 0 1
PlacardNotation cbc:PlacardNotation 0 1
PlacardEndorsement cbc:PlacardEndorsement 0 1
AdditionalInformation cbc:AdditionalInformation 0 1
UNDGCode cac:UNDGCode 0 1
EmergencyProceduresCode cac:EmergencyProceduresCode 0 1
MedicalFirstAidGuideCode cac:MedicalFirstAidGuideCode 0 1
TechnicalName cbc:TechnicalName 0 1
ContactParty cac:ContactParty 0 1
SecondaryHazard cac:SecondaryHazard 0 unbounded
HazardousGoodsTransit cac:HazardousGoodsTransit 0 unbounded
EmergencyTemperature cac:EmergencyTemperature 0 1
FlashpointTemperature cac:FlashpointTemperature 0 1
AdditionalTemperature cac:AdditionalTemperature 0 unbounded
Collapse Derivation Tree:
Collapse References:
cac:HazardousItem
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
