Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: InhalationToxicityZoneCode
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: udt:CodeType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
BBIE Hazardous Goods Transit. Inhalation_ Toxicity Zone. Code a code identifying the Inhalation Toxicity Hazard Zone for the hazardous goods, as defined by the US Department of Transportation. 0..1 Hazardous Goods Transit Inhalation Toxicity Zone Code Code. Type

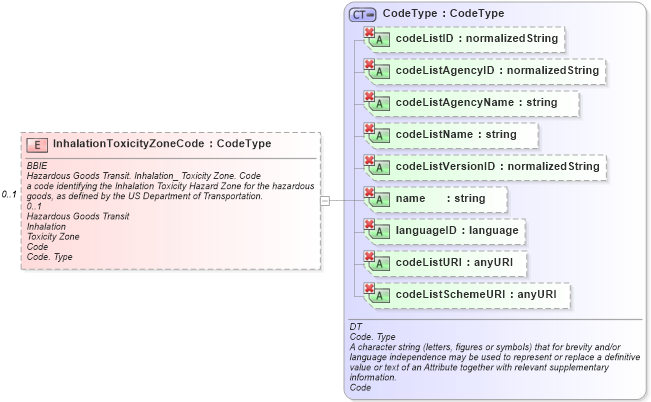

Collapse XSD Schema Diagram:
Drilldown into codeListSchemeURI in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into codeListURI in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into languageID in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into name in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into codeListVersionID in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into codeListName in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into codeListAgencyName in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into codeListAgencyID in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into codeListID in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into CodeType in schema ubl-unspecializeddatatypes-1_0_xsdXSD Diagram of InhalationToxicityZoneCode in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="InhalationToxicityZoneCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>BBIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Hazardous Goods Transit. Inhalation_ Toxicity Zone. Code</ccts:DictionaryEntryName>
                <ccts:Definition>a code identifying the Inhalation Toxicity Hazard Zone for the hazardous goods, as defined by the US Department of Transportation.</ccts:Definition>
                <ccts:Cardinality>0..1</ccts:Cardinality>
                <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                <ccts:PropertyTermQualifier>Inhalation</ccts:PropertyTermQualifier>
                <ccts:PropertyTerm>Toxicity Zone</ccts:PropertyTerm>
                <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                <ccts:DataType>Code. Type</ccts:DataType>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
codeListID udt:codeListID Optional
codeListAgencyID udt:codeListAgencyID Optional
codeListAgencyName udt:codeListAgencyName Optional
codeListName udt:codeListName Optional
codeListVersionID udt:codeListVersionID Optional
name udt:name Optional
languageID udt:languageID Optional
codeListURI udt:codeListURI Optional
codeListSchemeURI udt:codeListSchemeURI Optional
Collapse Derivation Tree:
