Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: LatitudeDirectionCode
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: lat:LatitudeDirectionCodeType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
BBIE Location Coordinate. Latitude Direction. Code specifies the direction of latitude measurement offset from the equator. 0..1 Location Coordinate Latitude Direction Code Latitude Direction_ Code. Type

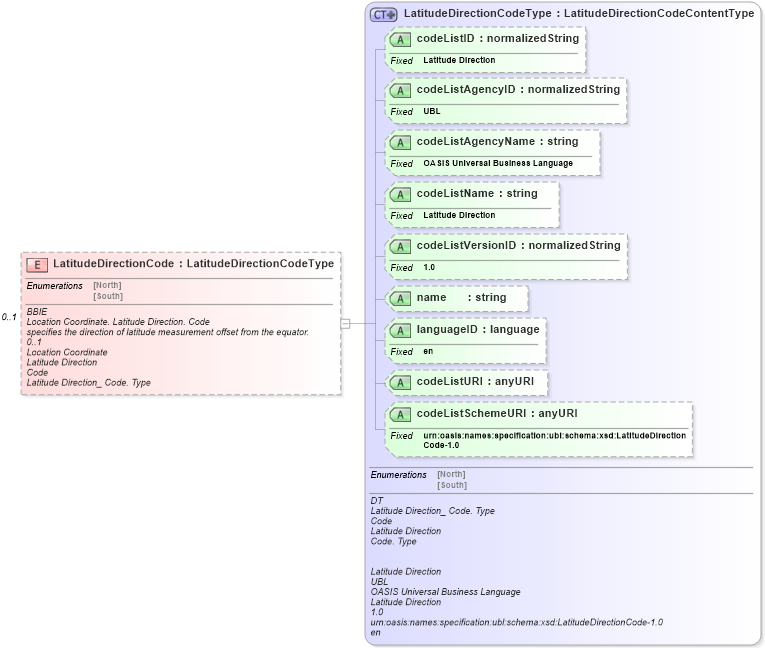

Collapse XSD Schema Diagram:
Drilldown into codeListSchemeURI in schema ubl-codelist-latitudedirectioncode-1_0_xsd Drilldown into codeListURI in schema ubl-codelist-latitudedirectioncode-1_0_xsd Drilldown into languageID in schema ubl-codelist-latitudedirectioncode-1_0_xsd Drilldown into name in schema ubl-codelist-latitudedirectioncode-1_0_xsd Drilldown into codeListVersionID in schema ubl-codelist-latitudedirectioncode-1_0_xsd Drilldown into codeListName in schema ubl-codelist-latitudedirectioncode-1_0_xsd Drilldown into codeListAgencyName in schema ubl-codelist-latitudedirectioncode-1_0_xsd Drilldown into codeListAgencyID in schema ubl-codelist-latitudedirectioncode-1_0_xsd Drilldown into codeListID in schema ubl-codelist-latitudedirectioncode-1_0_xsd Drilldown into LatitudeDirectionCodeType in schema ubl-codelist-latitudedirectioncode-1_0_xsdXSD Diagram of LatitudeDirectionCode in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="LatitudeDirectionCode" type="lat:LatitudeDirectionCodeType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>BBIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Location Coordinate. Latitude Direction. Code</ccts:DictionaryEntryName>
                <ccts:Definition>specifies the direction of latitude measurement offset from the equator.</ccts:Definition>
                <ccts:Cardinality>0..1</ccts:Cardinality>
                <ccts:ObjectClass>Location Coordinate</ccts:ObjectClass>
                <ccts:PropertyTerm>Latitude Direction</ccts:PropertyTerm>
                <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                <ccts:DataType>Latitude Direction_ Code. Type</ccts:DataType>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
codeListID lat:codeListID Optional
codeListAgencyID lat:codeListAgencyID Optional
codeListAgencyName lat:codeListAgencyName Optional
codeListName lat:codeListName Optional
codeListVersionID lat:codeListVersionID Optional
name lat:name Optional
languageID lat:languageID Optional
codeListURI lat:codeListURI Optional
codeListSchemeURI lat:codeListSchemeURI Optional
Collapse Derivation Tree:
