Definition Type: ComplexType
Name: LineStatusCodeType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:LineStatusCode-1.0
Type: lstat:LineStatusCodeContentType
Containing Schema: UBL-CodeList-LineStatusCode-1.0.xsd
Abstract
Documentation:
DT Line Status_ Code. Type Code Line Status Code. Type Line Status UBL OASIS Universal Business Language Line Status 1.0 urn:oasis:names:specification:ubl:schema:xsd:LineStatusCode-1.0 en

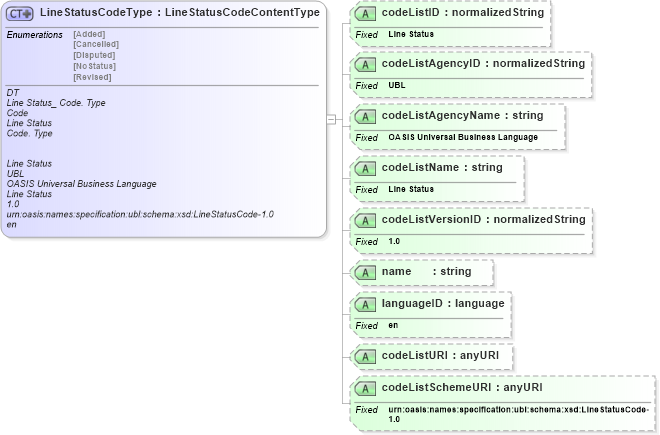

Collapse XSD Schema Diagram:
Drilldown into codeListSchemeURI in schema ubl-codelist-linestatuscode-1_0_xsd Drilldown into codeListURI in schema ubl-codelist-linestatuscode-1_0_xsd Drilldown into languageID in schema ubl-codelist-linestatuscode-1_0_xsd Drilldown into name in schema ubl-codelist-linestatuscode-1_0_xsd Drilldown into codeListVersionID in schema ubl-codelist-linestatuscode-1_0_xsd Drilldown into codeListName in schema ubl-codelist-linestatuscode-1_0_xsd Drilldown into codeListAgencyName in schema ubl-codelist-linestatuscode-1_0_xsd Drilldown into codeListAgencyID in schema ubl-codelist-linestatuscode-1_0_xsd Drilldown into codeListID in schema ubl-codelist-linestatuscode-1_0_xsdXSD Diagram of LineStatusCodeType in schema ubl-codelist-linestatuscode-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="LineStatusCodeType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>DT</ccts:ComponentType>
                <ccts:DictionaryEntryName>Line Status_ Code. Type</ccts:DictionaryEntryName>
                <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                <ccts:DataTypeQualifier>Line Status</ccts:DataTypeQualifier>
                <ccts:DataType>Code. Type</ccts:DataType>
            </ccts:Component>
            <ccts:Instance xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:CodeListID>Line Status</ccts:CodeListID>
                <ccts:CodeListAgencyID>UBL</ccts:CodeListAgencyID>
                <ccts:CodeListAgencyName>OASIS Universal Business Language</ccts:CodeListAgencyName>
                <ccts:CodeListName>Line Status</ccts:CodeListName>
                <ccts:CodeListVersionID>1.0</ccts:CodeListVersionID>
                <ccts:CodeListSchemeURI>urn:oasis:names:specification:ubl:schema:xsd:LineStatusCode-1.0</ccts:CodeListSchemeURI>
                <ccts:LanguageID>en</ccts:LanguageID>
            </ccts:Instance>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="LineStatusCodeContentType">
            <xsd:attribute name="codeListID" type="xsd:normalizedString" fixed="Line Status" use="optional" />
            <xsd:attribute name="codeListAgencyID" type="xsd:normalizedString" fixed="UBL" use="optional" />
            <xsd:attribute name="codeListAgencyName" type="xsd:string" fixed="OASIS Universal Business Language" use="optional" />
            <xsd:attribute name="codeListName" type="xsd:string" fixed="Line Status" use="optional" />
            <xsd:attribute name="codeListVersionID" type="xsd:normalizedString" fixed="1.0" use="optional" />
            <xsd:attribute name="name" type="xsd:string" use="optional" />
            <xsd:attribute name="languageID" type="xsd:language" fixed="en" use="optional" />
            <xsd:attribute name="codeListURI" type="xsd:anyURI" use="optional" />
            <xsd:attribute name="codeListSchemeURI" type="xsd:anyURI" fixed="urn:oasis:names:specification:ubl:schema:xsd:LineStatusCode-1.0" use="optional" />
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
codeListID lstat:codeListID Optional
codeListAgencyID lstat:codeListAgencyID Optional
codeListAgencyName lstat:codeListAgencyName Optional
codeListName lstat:codeListName Optional
codeListVersionID lstat:codeListVersionID Optional
name lstat:name Optional
languageID lstat:languageID Optional
codeListURI lstat:codeListURI Optional
codeListSchemeURI lstat:codeListSchemeURI Optional
Collapse Derivation Tree:
Collapse References:
cac:LineStatusCode, cac:LineStatusCode, cac:LineStatusCode, cac:LineStatusCode, cac:LineStatusCode, cac:LineStatusCode
