Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: LongitudeDirectionCode
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: lon:LongitudeDirectionCodeType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
BBIE Location Coordinate. Longitude Direction. Code specifies the direction of longitude measurement offset from the meridian 0..1 Location Coordinate Longitude Direction Code Longitude Direction_ Code. Type

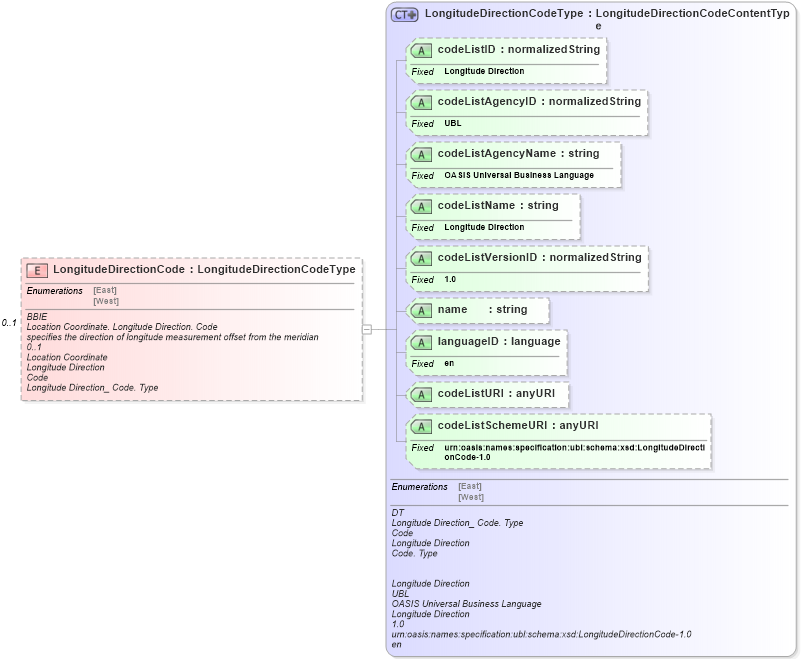

Collapse XSD Schema Diagram:
Drilldown into codeListSchemeURI in schema ubl-codelist-longitudedirectioncode-1_0_xsd Drilldown into codeListURI in schema ubl-codelist-longitudedirectioncode-1_0_xsd Drilldown into languageID in schema ubl-codelist-longitudedirectioncode-1_0_xsd Drilldown into name in schema ubl-codelist-longitudedirectioncode-1_0_xsd Drilldown into codeListVersionID in schema ubl-codelist-longitudedirectioncode-1_0_xsd Drilldown into codeListName in schema ubl-codelist-longitudedirectioncode-1_0_xsd Drilldown into codeListAgencyName in schema ubl-codelist-longitudedirectioncode-1_0_xsd Drilldown into codeListAgencyID in schema ubl-codelist-longitudedirectioncode-1_0_xsd Drilldown into codeListID in schema ubl-codelist-longitudedirectioncode-1_0_xsd Drilldown into LongitudeDirectionCodeType in schema ubl-codelist-longitudedirectioncode-1_0_xsdXSD Diagram of LongitudeDirectionCode in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="LongitudeDirectionCode" type="lon:LongitudeDirectionCodeType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>BBIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Location Coordinate. Longitude Direction. Code</ccts:DictionaryEntryName>
                <ccts:Definition>specifies the direction of longitude measurement offset from the meridian</ccts:Definition>
                <ccts:Cardinality>0..1</ccts:Cardinality>
                <ccts:ObjectClass>Location Coordinate</ccts:ObjectClass>
                <ccts:PropertyTerm>Longitude Direction</ccts:PropertyTerm>
                <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                <ccts:DataType>Longitude Direction_ Code. Type</ccts:DataType>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
codeListID lon:codeListID Optional
codeListAgencyID lon:codeListAgencyID Optional
codeListAgencyName lon:codeListAgencyName Optional
codeListName lon:codeListName Optional
codeListVersionID lon:codeListVersionID Optional
name lon:name Optional
languageID lon:languageID Optional
codeListURI lon:codeListURI Optional
codeListSchemeURI lon:codeListSchemeURI Optional
Collapse Derivation Tree:
