Definition Type: Element
Name: OperatorCode
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: ero:OperatorCodeType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
BBIE Exchange Rate. Operator. Code in cases where there is only one rate allowed but either multiplication or division by that code must be used, this code identifies whether the calculation operator used is Multiply or Divide 0..1 Exchange Rate Operator Code Operator_ Code. Type

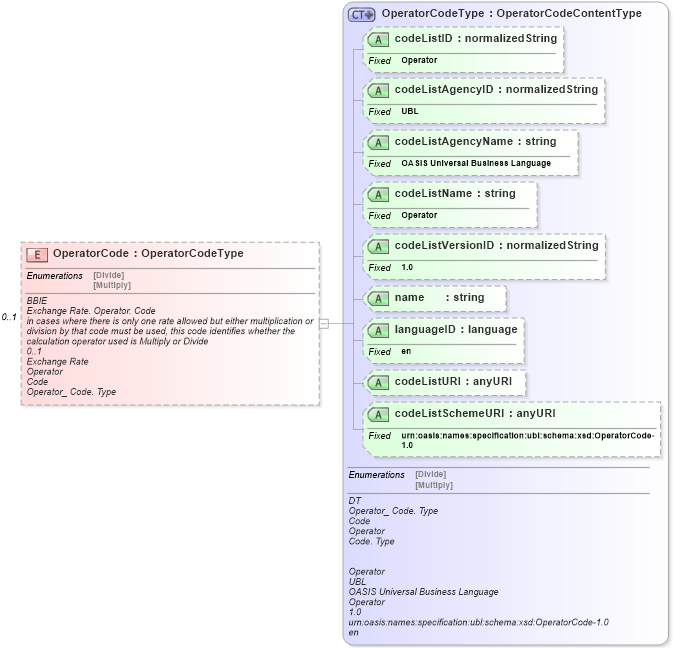

Collapse XSD Schema Diagram:
Drilldown into codeListSchemeURI in schema ubl-codelist-operatorcode-1_0_xsd Drilldown into codeListURI in schema ubl-codelist-operatorcode-1_0_xsd Drilldown into languageID in schema ubl-codelist-operatorcode-1_0_xsd Drilldown into name in schema ubl-codelist-operatorcode-1_0_xsd Drilldown into codeListVersionID in schema ubl-codelist-operatorcode-1_0_xsd Drilldown into codeListName in schema ubl-codelist-operatorcode-1_0_xsd Drilldown into codeListAgencyName in schema ubl-codelist-operatorcode-1_0_xsd Drilldown into codeListAgencyID in schema ubl-codelist-operatorcode-1_0_xsd Drilldown into codeListID in schema ubl-codelist-operatorcode-1_0_xsd Drilldown into OperatorCodeType in schema ubl-codelist-operatorcode-1_0_xsdXSD Diagram of OperatorCode in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="OperatorCode" type="ero:OperatorCodeType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>BBIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Exchange Rate. Operator. Code</ccts:DictionaryEntryName>
                <ccts:Definition>in cases where there is only one rate allowed but either multiplication or division by that code must be used, this code identifies whether the calculation operator used is Multiply or Divide</ccts:Definition>
                <ccts:Cardinality>0..1</ccts:Cardinality>
                <ccts:ObjectClass>Exchange Rate</ccts:ObjectClass>
                <ccts:PropertyTerm>Operator</ccts:PropertyTerm>
                <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                <ccts:DataType>Operator_ Code. Type</ccts:DataType>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
codeListID ero:codeListID Optional
codeListAgencyID ero:codeListAgencyID Optional
codeListAgencyName ero:codeListAgencyName Optional
codeListName ero:codeListName Optional
codeListVersionID ero:codeListVersionID Optional
name ero:name Optional
languageID ero:languageID Optional
codeListURI ero:codeListURI Optional
codeListSchemeURI ero:codeListSchemeURI Optional
Collapse Derivation Tree:
