Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: OrderReference
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: cac:OrderReferenceType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract

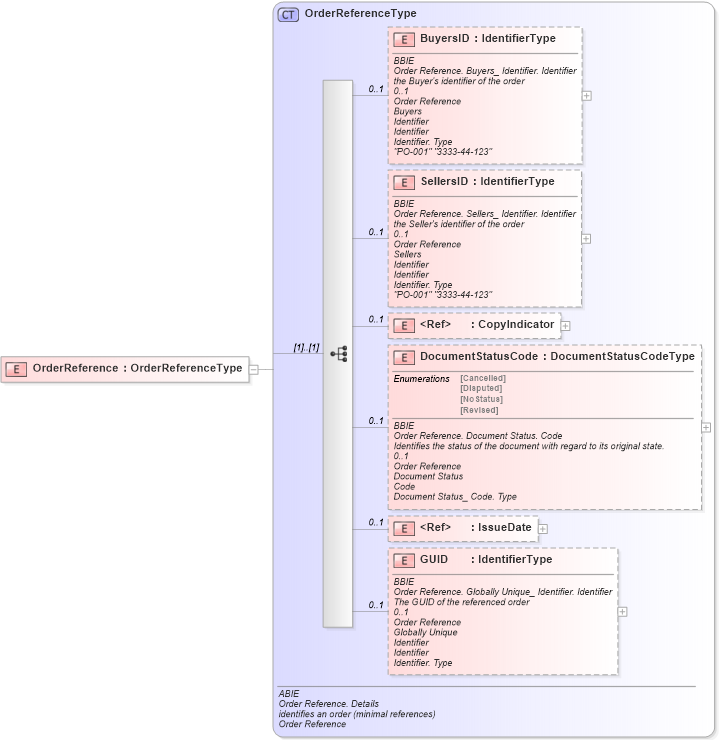

Collapse XSD Schema Diagram:
Drilldown into GUID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into DocumentStatusCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into SellersID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into BuyersID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into OrderReferenceType in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of OrderReference in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="OrderReference" type="OrderReferenceType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BuyersID cac:BuyersID 0 1
SellersID cac:SellersID 0 1
CopyIndicator cbc:CopyIndicator 0 1
DocumentStatusCode cac:DocumentStatusCode 0 1
IssueDate cbc:IssueDate 0 1
GUID cac:GUID 0 1
Collapse Derivation Tree:
