Definition Type: ComplexType
Name: PaymentMeansCodeType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:PaymentMeansCode-1.0
Type: pty:PaymentMeansCodeContentType
Containing Schema: UBL-CodeList-PaymentMeansCode-1.0.xsd
Abstract
Documentation:
DT Payment Means_ Code. Type Code Payment Means Code. Type UN/ECE 4461 6 United Nations Economic Commission for Europe Payment Means D03A http://www.unece.org/trade/untdid/d03a/tred/tred4461.htm urn:oasis:names:specification:ubl:schema:xsd:PaymentMeansCode-1.0

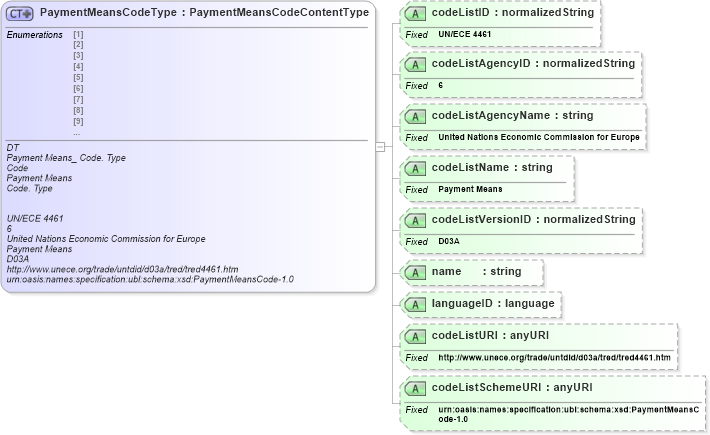

Collapse XSD Schema Diagram:
Drilldown into codeListSchemeURI in schema ubl-codelist-paymentmeanscode-1_0_xsd Drilldown into codeListURI in schema ubl-codelist-paymentmeanscode-1_0_xsd Drilldown into languageID in schema ubl-codelist-paymentmeanscode-1_0_xsd Drilldown into name in schema ubl-codelist-paymentmeanscode-1_0_xsd Drilldown into codeListVersionID in schema ubl-codelist-paymentmeanscode-1_0_xsd Drilldown into codeListName in schema ubl-codelist-paymentmeanscode-1_0_xsd Drilldown into codeListAgencyName in schema ubl-codelist-paymentmeanscode-1_0_xsd Drilldown into codeListAgencyID in schema ubl-codelist-paymentmeanscode-1_0_xsd Drilldown into codeListID in schema ubl-codelist-paymentmeanscode-1_0_xsdXSD Diagram of PaymentMeansCodeType in schema ubl-codelist-paymentmeanscode-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="PaymentMeansCodeType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>DT</ccts:ComponentType>
                <ccts:DictionaryEntryName>Payment Means_ Code. Type</ccts:DictionaryEntryName>
                <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                <ccts:DataTypeQualifier>Payment Means</ccts:DataTypeQualifier>
                <ccts:DataType>Code. Type</ccts:DataType>
            </ccts:Component>
            <ccts:Instance xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:CodeListID>UN/ECE 4461</ccts:CodeListID>
                <ccts:CodeListAgencyID>6</ccts:CodeListAgencyID>
                <ccts:CodeListAgencyName>United Nations Economic Commission for Europe</ccts:CodeListAgencyName>
                <ccts:CodeListName>Payment Means</ccts:CodeListName>
                <ccts:CodeListVersionID>D03A</ccts:CodeListVersionID>
                <ccts:CodeListURI>http://www.unece.org/trade/untdid/d03a/tred/tred4461.htm</ccts:CodeListURI>
                <ccts:CodeListSchemeURI>urn:oasis:names:specification:ubl:schema:xsd:PaymentMeansCode-1.0</ccts:CodeListSchemeURI>
            </ccts:Instance>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="PaymentMeansCodeContentType">
            <xsd:attribute name="codeListID" type="xsd:normalizedString" fixed="UN/ECE 4461" use="optional" />
            <xsd:attribute name="codeListAgencyID" type="xsd:normalizedString" fixed="6" use="optional" />
            <xsd:attribute name="codeListAgencyName" type="xsd:string" fixed="United Nations Economic Commission for Europe" use="optional" />
            <xsd:attribute name="codeListName" type="xsd:string" fixed="Payment Means" use="optional" />
            <xsd:attribute name="codeListVersionID" type="xsd:normalizedString" fixed="D03A" use="optional" />
            <xsd:attribute name="name" type="xsd:string" use="optional" />
            <xsd:attribute name="languageID" type="xsd:language" use="optional" />
            <xsd:attribute name="codeListURI" type="xsd:anyURI" fixed="http://www.unece.org/trade/untdid/d03a/tred/tred4461.htm" use="optional" />
            <xsd:attribute name="codeListSchemeURI" type="xsd:anyURI" fixed="urn:oasis:names:specification:ubl:schema:xsd:PaymentMeansCode-1.0" use="optional" />
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
codeListID pty:codeListID Optional
codeListAgencyID pty:codeListAgencyID Optional
codeListAgencyName pty:codeListAgencyName Optional
codeListName pty:codeListName Optional
codeListVersionID pty:codeListVersionID Optional
name pty:name Optional
languageID pty:languageID Optional
codeListURI pty:codeListURI Optional
codeListSchemeURI pty:codeListSchemeURI Optional
Collapse Derivation Tree:
Collapse References:
cac:PaymentMeansCode
