Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: ShortageActionCode
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: udt:CodeType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
BBIE Receipt Line. Shortage_ Action. Code describes the action, by a code, that the buyer/recipient wishes the seller to take as a result of the supplied quantity being short. 0..1 Receipt Line Shortage Action Code Code. Type

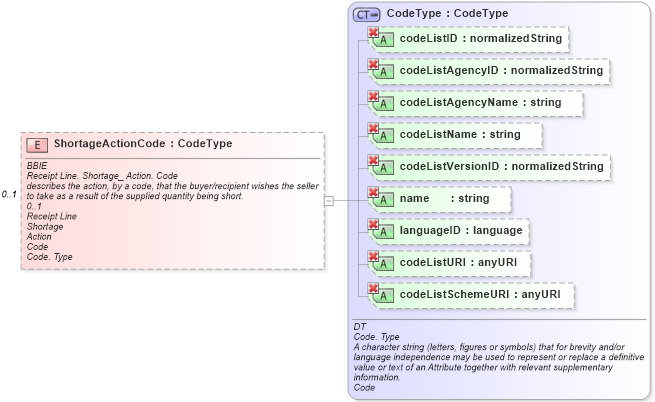

Collapse XSD Schema Diagram:
Drilldown into codeListSchemeURI in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into codeListURI in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into languageID in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into name in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into codeListVersionID in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into codeListName in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into codeListAgencyName in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into codeListAgencyID in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into codeListID in schema ubl-unspecializeddatatypes-1_0_xsd Drilldown into CodeType in schema ubl-unspecializeddatatypes-1_0_xsdXSD Diagram of ShortageActionCode in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="ShortageActionCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>BBIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Receipt Line. Shortage_ Action. Code</ccts:DictionaryEntryName>
                <ccts:Definition>describes the action, by a code, that the buyer/recipient wishes the seller to take as a result of the supplied quantity being short.</ccts:Definition>
                <ccts:Cardinality>0..1</ccts:Cardinality>
                <ccts:ObjectClass>Receipt Line</ccts:ObjectClass>
                <ccts:PropertyTermQualifier>Shortage</ccts:PropertyTermQualifier>
                <ccts:PropertyTerm>Action</ccts:PropertyTerm>
                <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                <ccts:DataType>Code. Type</ccts:DataType>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
codeListID udt:codeListID Optional
codeListAgencyID udt:codeListAgencyID Optional
codeListAgencyName udt:codeListAgencyName Optional
codeListName udt:codeListName Optional
codeListVersionID udt:codeListVersionID Optional
name udt:name Optional
languageID udt:languageID Optional
codeListURI udt:codeListURI Optional
codeListSchemeURI udt:codeListSchemeURI Optional
Collapse Derivation Tree:
