Definition Type: Element
Name: SubstitutionStatusCode
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: sst:SubstitutionStatusCodeType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
BBIE Order Line. Substitution Status. Code indicates the status of this OrderItem in relation to substitution, denoting an acceptable substitute in the Order, an original for which an alternative is offered in the Order Confirmation, or an original for which an actual replacement is advised in the Despatch Advice. 0..1 Order Line Substitution Status Code Substitution Status_ Code. Type

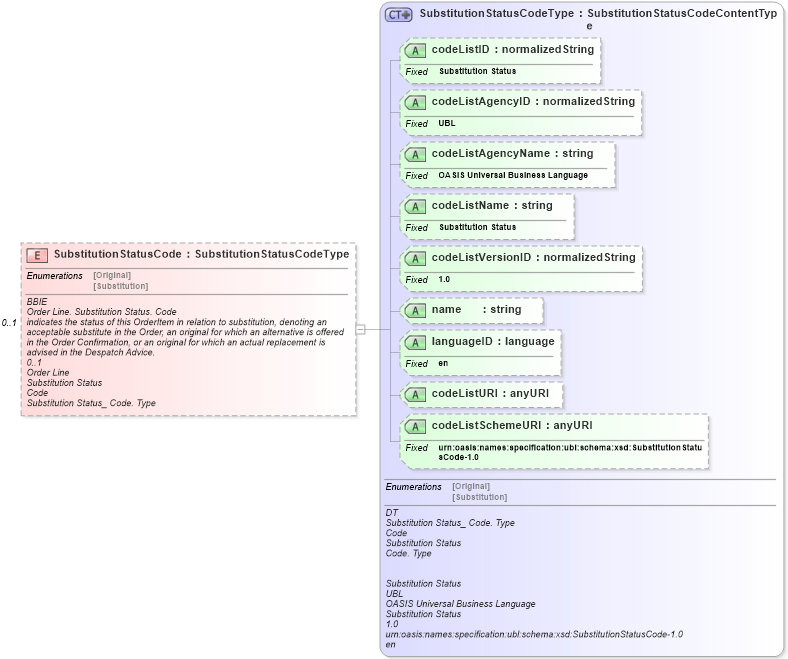

Collapse XSD Schema Diagram:
Drilldown into codeListSchemeURI in schema ubl-codelist-substitutionstatuscode-1_0_xsd Drilldown into codeListURI in schema ubl-codelist-substitutionstatuscode-1_0_xsd Drilldown into languageID in schema ubl-codelist-substitutionstatuscode-1_0_xsd Drilldown into name in schema ubl-codelist-substitutionstatuscode-1_0_xsd Drilldown into codeListVersionID in schema ubl-codelist-substitutionstatuscode-1_0_xsd Drilldown into codeListName in schema ubl-codelist-substitutionstatuscode-1_0_xsd Drilldown into codeListAgencyName in schema ubl-codelist-substitutionstatuscode-1_0_xsd Drilldown into codeListAgencyID in schema ubl-codelist-substitutionstatuscode-1_0_xsd Drilldown into codeListID in schema ubl-codelist-substitutionstatuscode-1_0_xsd Drilldown into SubstitutionStatusCodeType in schema ubl-codelist-substitutionstatuscode-1_0_xsdXSD Diagram of SubstitutionStatusCode in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="SubstitutionStatusCode" type="sst:SubstitutionStatusCodeType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>BBIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Order Line. Substitution Status. Code</ccts:DictionaryEntryName>
                <ccts:Definition>indicates the status of this OrderItem in relation to substitution, denoting an acceptable substitute in the Order, an original for which an alternative is offered in the Order Confirmation, or an original for which an actual replacement is advised in the Despatch Advice.</ccts:Definition>
                <ccts:Cardinality>0..1</ccts:Cardinality>
                <ccts:ObjectClass>Order Line</ccts:ObjectClass>
                <ccts:PropertyTerm>Substitution Status</ccts:PropertyTerm>
                <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                <ccts:DataType>Substitution Status_ Code. Type</ccts:DataType>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
codeListID sst:codeListID Optional
codeListAgencyID sst:codeListAgencyID Optional
codeListAgencyName sst:codeListAgencyName Optional
codeListName sst:codeListName Optional
codeListVersionID sst:codeListVersionID Optional
name sst:name Optional
languageID sst:languageID Optional
codeListURI sst:codeListURI Optional
codeListSchemeURI sst:codeListSchemeURI Optional
Collapse Derivation Tree:
