Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: TransportEquipmentSealType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract
Documentation:
ABIE Transport Equipment Seal. Details information about a seal used in connection with transport equipment. Transport Equipment Seal Container Seal A security device attached to the doors of a shipping container.

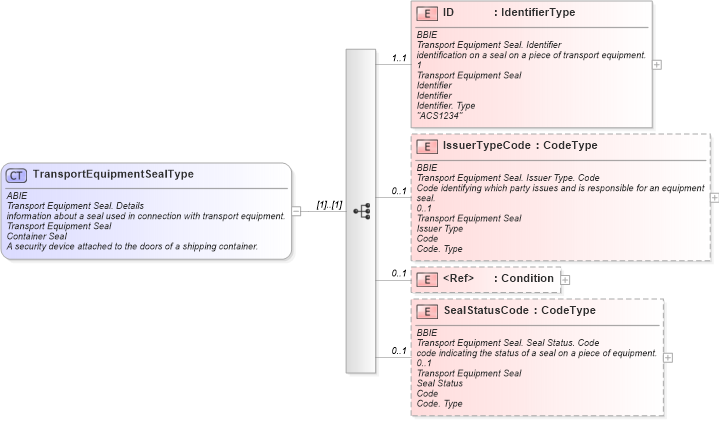

Collapse XSD Schema Diagram:
Drilldown into SealStatusCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Condition in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into IssuerTypeCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ID in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of TransportEquipmentSealType in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="TransportEquipmentSealType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Transport Equipment Seal. Details</ccts:DictionaryEntryName>
                <ccts:Definition>information about a seal used in connection with transport equipment.</ccts:Definition>
                <ccts:ObjectClass>Transport Equipment Seal</ccts:ObjectClass>
                <ccts:AlternativeBusinessTerms>Container Seal</ccts:AlternativeBusinessTerms>
                <ccts:Examples>A security device attached to the doors of a shipping container.</ccts:Examples>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="ID" type="udt:IdentifierType" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment Seal. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>identification on a seal on a piece of transport equipment.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment Seal</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>"ACS1234"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="IssuerTypeCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment Seal. Issuer Type. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Code identifying which party issues and is responsible for an equipment seal.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment Seal</ccts:ObjectClass>
                        <ccts:PropertyTerm>Issuer Type</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Condition" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment Seal. Condition. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>information relating to the condition of a seal on a piece of equipment.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment Seal</ccts:ObjectClass>
                        <ccts:PropertyTerm>Condition</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="SealStatusCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment Seal. Seal Status. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>code indicating the status of a seal on a piece of equipment.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment Seal</ccts:ObjectClass>
                        <ccts:PropertyTerm>Seal Status</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cac:ID 1 1
IssuerTypeCode cac:IssuerTypeCode 0 1
Condition cbc:Condition 0 1
SealStatusCode cac:SealStatusCode 0 1
Collapse Derivation Tree:
Collapse References:
cac:TransportEquipmentSeal
