Definition Type: ComplexType
Name: TransportHandlingUnitType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract
Documentation:
ABIE Transport Handling Unit. Details information about a set of items which can be considered to be an undividable set of items for the purposes of delivery, also know as a logistics unit. A single handling unit may consist of a single item or a bundle of traded items. Transport Handling Unit Logistics Unit, Handling Unit

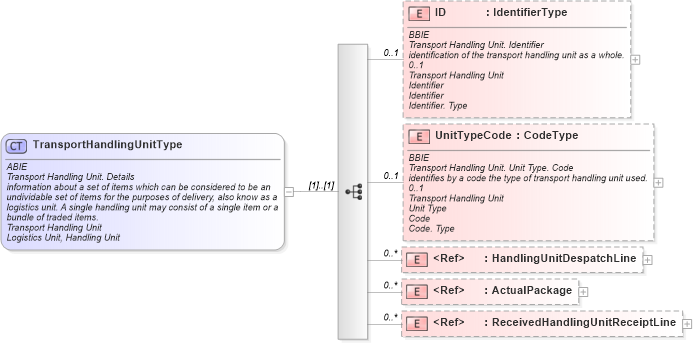

Collapse XSD Schema Diagram:
Drilldown into ReceivedHandlingUnitReceiptLine in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ActualPackage in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into HandlingUnitDespatchLine in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into UnitTypeCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ID in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of TransportHandlingUnitType in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="TransportHandlingUnitType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Transport Handling Unit. Details</ccts:DictionaryEntryName>
                <ccts:Definition>information about a set of items which can be considered to be an undividable set of items for the purposes of delivery, also know as a logistics unit. A single handling unit may consist of a single item or a bundle of traded items.</ccts:Definition>
                <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                <ccts:AlternativeBusinessTerms>Logistics Unit, Handling Unit</ccts:AlternativeBusinessTerms>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="ID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>identification of the transport handling unit as a whole.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="UnitTypeCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Unit Type. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>identifies by a code the type of transport handling unit used.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Unit Type</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="HandlingUnitDespatchLine" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Handling Unit Despatch Line. Despatch Line</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the Transport Handling Unit with one or more despatch lines on a despatch advice.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Handling Unit Despatch Line</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Despatch Line</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ActualPackage" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Actual_ Package. Package</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the Transport Handling Unit with the actual packaging.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Actual</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Package</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Package</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ReceivedHandlingUnitReceiptLine" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Handling Unit. Received_ Handling Unit Receipt Line. Receipt Line</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the Transport Handling Unit with one or more receipt lines on a receipt advice.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Handling Unit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Received</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Handling Unit Receipt Line</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Receipt Line</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cac:ID 0 1
UnitTypeCode cac:UnitTypeCode 0 1
HandlingUnitDespatchLine cac:HandlingUnitDespatchLine 0 unbounded
ActualPackage cac:ActualPackage 0 unbounded
ReceivedHandlingUnitReceiptLine cac:ReceivedHandlingUnitReceiptLine 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:DespatchedTransportHandlingUnit, nsH:ReceivedTransportHandlingUnitcac:TransportHandlingUnit,
