Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: AddressType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Address. Details Information about a structured address. Address

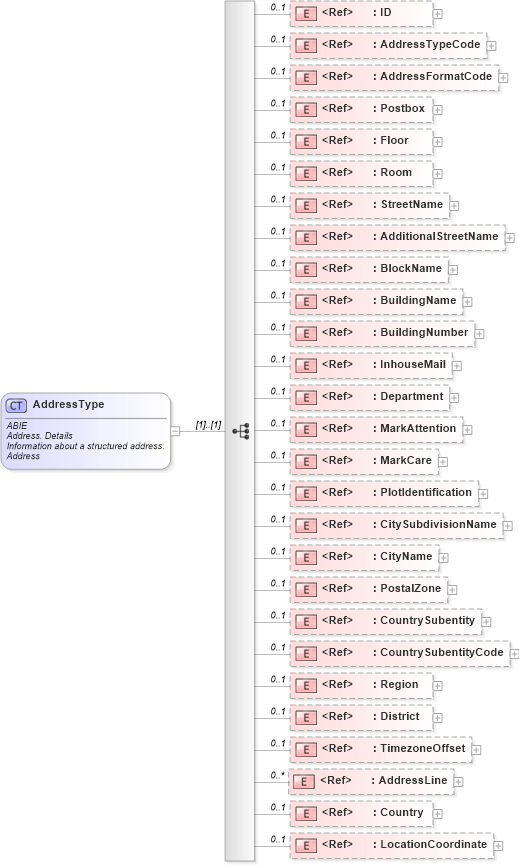

Collapse XSD Schema Diagram:
Drilldown into LocationCoordinate in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Country in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AddressLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TimezoneOffset in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into District in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Region in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CountrySubentityCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CountrySubentity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PostalZone in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CityName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CitySubdivisionName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PlotIdentification in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MarkCare in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MarkAttention in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Department in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into InhouseMail in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into BuildingNumber in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into BuildingName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into BlockName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AdditionalStreetName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into StreetName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Room in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Floor in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Postbox in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AddressFormatCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AddressTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of AddressType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="AddressType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Address. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about a structured address.</ccts:Definition>
                <ccts:ObjectClass>Address</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for a specific address within a scheme of registered addresses.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>DetailsKey</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:AddressTypeCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Address Type Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>A code specifying the type of this address, such as business address or home address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Address Type Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:AddressFormatCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Address Format Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>A code specifying the format of this address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Address Format Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Postbox" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Postbox. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>A post office box number.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Postbox</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>PostBox, PO Box</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"123"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Floor" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Floor. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>An addressable floor of a building.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Floor</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>SubPremiseNumber</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"30"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Room" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Room. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>A room, suite, or apartment of a building.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Room</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>SubPremiseNumber</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Reception"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:StreetName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Street Name. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>The name of a street.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Street Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Thoroughfare</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Kwun Tong Road"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:AdditionalStreetName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Additional_ Street Name. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>An additional name of a street used to further specify the street name.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Street Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Thoroughfare</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Cnr Aberdeen Road"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:BlockName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Block Name. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>The block name, expressed as text, for an area surrounded by streets and usually containing several buildings for this address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Block Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                        <ccts:Examples>Seabird</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:BuildingName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Building Name. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>The name of a building.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Building Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>BuildingName</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Plot 421"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:BuildingNumber" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Building Number. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>The number of a building.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Building Number</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>PremiseNumber</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"388"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:InhouseMail" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Inhouse_ Mail. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>A specific location within a building.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Inhouse</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Mail</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>MailStop</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Department" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Department. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>An addressable department of an organization.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Department</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Department</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Accounts Payable"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:MarkAttention" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Mark Attention. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>The name, expressed as text, of a person or department in the organization to whom incoming mail is marked with words such as 'for the attention of' or 'FAO' or 'ATTN' for this address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Mark Attention</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:MarkCare" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Mark Care. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>The name, expressed as text, of a person or organization at this address to whom incoming mail is marked with words such as 'care of' or 'C/O'.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Mark Care</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PlotIdentification" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Plot Identification. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>The textual expression of the unique identifier for the piece of land on which this address is located such as a plot number.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Plot Identification</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CitySubdivisionName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. City Subdivision Name. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>A name, expressed as text, of a subdivision of a city for this address, for example, a district or borough.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>City Subdivision Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CityName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. City Name. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>The name of a city, town, or village.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>City Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>LocalityName</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Hong Kong"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PostalZone" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Postal_ Zone. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>The identifier for an addressable group of properties according to the relevant national postal service, such as a ZIP code or Post Code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Postal</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Zone</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>PostalCodeNumber</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"SW11 4EW" "2500 GG"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CountrySubentity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Country Subentity. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>A territorial division of a country, such as a county or state.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Country Subentity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>AdministrativeArea, State, Country, Shire, Canton</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"Florida","Tamilnadu"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CountrySubentityCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Country Subentity Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>A territorial division of a country, such as a county or state, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Country Subentity Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>AdministrativeAreaCode, State Code</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Region" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Region. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>An addressable region or group of countries.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Region</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>LocalityName, Economic Zone</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"European Union"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:District" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. District. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>A geographical division of a country.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>District</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>LocalityName, Area</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"East Coast"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TimezoneOffset" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Timezone Offset. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>For the time zone in which the address is situated, the measure of time offset from Universal Coordinated Time (UTC).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Timezone Offset</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:Examples>"+8:00" "-3:00"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AddressLine" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Address Line</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Address Line.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Address Line</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Address Line</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Country" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Country</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Country.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Country</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Country</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="LocationCoordinate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Address. Location Coordinate</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Location Coordinate.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Address</ccts:ObjectClass>
                        <ccts:PropertyTerm>Location Coordinate</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Location Coordinate</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
AddressTypeCode cbc:AddressTypeCode 0 1
AddressFormatCode cbc:AddressFormatCode 0 1
Postbox cbc:Postbox 0 1
Floor cbc:Floor 0 1
Room cbc:Room 0 1
StreetName cbc:StreetName 0 1
AdditionalStreetName cbc:AdditionalStreetName 0 1
BlockName cbc:BlockName 0 1
BuildingName cbc:BuildingName 0 1
BuildingNumber cbc:BuildingNumber 0 1
InhouseMail cbc:InhouseMail 0 1
Department cbc:Department 0 1
MarkAttention cbc:MarkAttention 0 1
MarkCare cbc:MarkCare 0 1
PlotIdentification cbc:PlotIdentification 0 1
CitySubdivisionName cbc:CitySubdivisionName 0 1
CityName cbc:CityName 0 1
PostalZone cbc:PostalZone 0 1
CountrySubentity cbc:CountrySubentity 0 1
CountrySubentityCode cbc:CountrySubentityCode 0 1
Region cbc:Region 0 1
District cbc:District 0 1
TimezoneOffset cbc:TimezoneOffset 0 1
AddressLine cac:AddressLine 0 unbounded
Country cac:Country 0 1
LocationCoordinate cac:LocationCoordinate 0 1
Collapse Derivation Tree:
Collapse References:
cac:Address, cac:ApplicableAddress, cac:ApplicableTerritoryAddress, cac:DeliveryAddress, cac:DespatchAddress, cac:JurisdictionRegionAddress, cac:OriginAddress, cac:PostalAddress, cac:RegistrationAddress
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
