Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: BillingReference
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:BillingReferenceType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

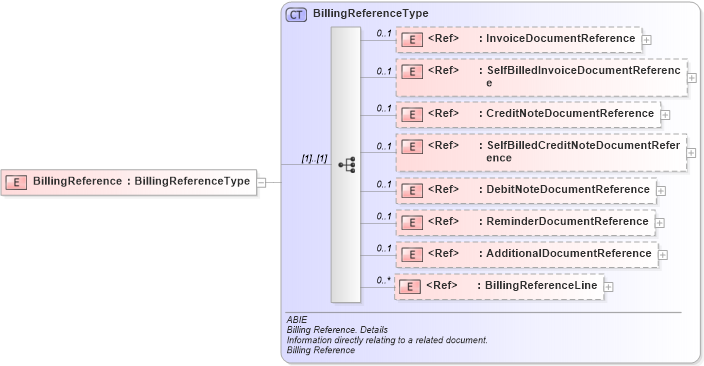

Collapse XSD Schema Diagram:
Drilldown into BillingReferenceLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ReminderDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DebitNoteDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SelfBilledCreditNoteDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CreditNoteDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SelfBilledInvoiceDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into InvoiceDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into BillingReferenceType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of BillingReference in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="BillingReference" type="BillingReferenceType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InvoiceDocumentReference cac:InvoiceDocumentReference 0 1
SelfBilledInvoiceDocumentReference cac:SelfBilledInvoiceDocumentReference 0 1
CreditNoteDocumentReference cac:CreditNoteDocumentReference 0 1
SelfBilledCreditNoteDocumentReference cac:SelfBilledCreditNoteDocumentReference 0 1
DebitNoteDocumentReference cac:DebitNoteDocumentReference 0 1
ReminderDocumentReference cac:ReminderDocumentReference 0 1
AdditionalDocumentReference cac:AdditionalDocumentReference 0 1
BillingReferenceLine cac:BillingReferenceLine 0 unbounded
Collapse Derivation Tree:
