Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: ContainerSizeTypeCodeType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:QualifiedDatatypes-2
Type: udt:CodeType
Containing Schema: UBL-QualifiedDatatypes-2.0.xsd
Abstract
Documentation:
Container Size Type_ Code. Type 2.0 The set of code values for classifying series 1 freight containers based on external dimensions and specifies the assoziated ratings and, where appropriate, the minimum internal and door opening dimensions for certain types of containers. Code Container Size Type

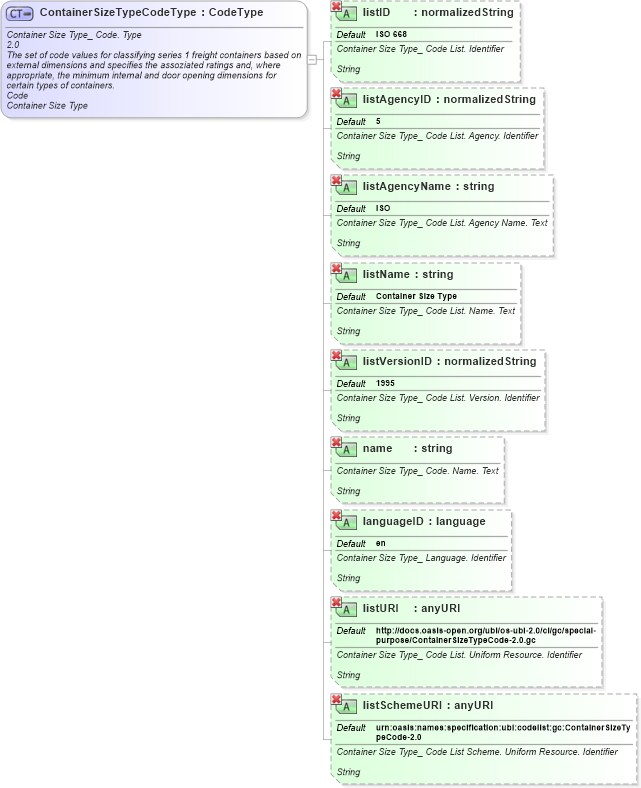

Collapse XSD Schema Diagram:
Drilldown into listSchemeURI in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listURI in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into languageID in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into name in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listVersionID in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listName in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listAgencyName in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listAgencyID in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listID in schema ubl-qualifieddatatypes-2_0_xsdXSD Diagram of ContainerSizeTypeCodeType in schema ubl-qualifieddatatypes-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="ContainerSizeTypeCodeType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:DictionaryEntryName>Container Size Type_ Code. Type</ccts:DictionaryEntryName>
                <ccts:Version>2.0</ccts:Version>
                <ccts:Definition>The set of code values for classifying series 1 freight containers based on external dimensions and specifies the assoziated ratings and, where appropriate, the minimum internal and door opening dimensions for certain types of containers.</ccts:Definition>
                <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                <ccts:QualifierTerm>Container Size Type</ccts:QualifierTerm>
                <ccts:UniqueID>
                </ccts:UniqueID>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:restriction base="udt:CodeType">
            <xsd:attribute name="listID" type="xsd:normalizedString" default="ISO 668" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Container Size Type_ Code List. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listAgencyID" type="xsd:normalizedString" default="5" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Container Size Type_ Code List. Agency. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listAgencyName" type="xsd:string" default="ISO" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Container Size Type_ Code List. Agency Name. Text</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listName" type="xsd:string" default="Container Size Type" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Container Size Type_ Code List. Name. Text</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listVersionID" type="xsd:normalizedString" default="1995" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Container Size Type_ Code List. Version. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="name" type="xsd:string" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Container Size Type_ Code. Name. Text</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="languageID" type="xsd:language" default="en" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Container Size Type_ Language. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listURI" type="xsd:anyURI" default="http://docs.oasis-open.org/ubl/os-ubl-2.0/cl/gc/special-purpose/ContainerSizeTypeCode-2.0.gc" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Container Size Type_ Code List. Uniform Resource. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listSchemeURI" type="xsd:anyURI" default="urn:oasis:names:specification:ubl:codelist:gc:ContainerSizeTypeCode-2.0" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Container Size Type_ Code List Scheme. Uniform Resource. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:restriction>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
listID qdt:listID ISO 668 Optional
listAgencyID qdt:listAgencyID 5 Optional
listAgencyName qdt:listAgencyName ISO Optional
listName qdt:listName Container Size Type Optional
listVersionID qdt:listVersionID 1995 Optional
name qdt:name Optional
languageID qdt:languageID en Optional
listURI qdt:listURI http://docs.oasis-open.org/ubl/os-ubl-2.0/cl/gc/special-purpose/ContainerSizeTypeCode-2.0.gc Optional
listSchemeURI qdt:listSchemeURI urn:oasis:names:specification:ubl:codelist:gc:ContainerSizeTypeCode-2.0 Optional
Collapse Derivation Tree:
