<xsd:complexType name="ContractType">
<xsd:annotation>
<xsd:documentation>
<ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
<ccts:ComponentType>ABIE</ccts:ComponentType>
<ccts:DictionaryEntryName>Contract. Details</ccts:DictionaryEntryName>
<ccts:Definition>Information about a Contract.</ccts:Definition>
<ccts:ObjectClass>Contract</ccts:ObjectClass>
</ccts:Component>
</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element ref="cbc:ID" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
<ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
<ccts:ComponentType>BBIE</ccts:ComponentType>
<ccts:DictionaryEntryName>Contract. Identifier</ccts:DictionaryEntryName>
<ccts:Definition>Identifies the Contract.</ccts:Definition>
<ccts:Cardinality>0..1</ccts:Cardinality>
<ccts:ObjectClass>Contract</ccts:ObjectClass>
<ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
<ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
<ccts:DataType>Identifier. Type</ccts:DataType>
<ccts:Examples>"CC23"</ccts:Examples>
</ccts:Component>
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="cbc:IssueDate" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
<ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
<ccts:ComponentType>BBIE</ccts:ComponentType>
<ccts:DictionaryEntryName>Contract. Issue Date. Date</ccts:DictionaryEntryName>
<ccts:Definition>The date on which the Contract was issued.</ccts:Definition>
<ccts:Cardinality>0..1</ccts:Cardinality>
<ccts:ObjectClass>Contract</ccts:ObjectClass>
<ccts:PropertyTerm>Issue Date</ccts:PropertyTerm>
<ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
<ccts:DataType>Date. Type</ccts:DataType>
</ccts:Component>
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="cbc:IssueTime" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
<ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
<ccts:ComponentType>BBIE</ccts:ComponentType>
<ccts:DictionaryEntryName>Contract. Issue Time. Time</ccts:DictionaryEntryName>
<ccts:Definition>The time at which the Contract was issued.</ccts:Definition>
<ccts:Cardinality>0..1</ccts:Cardinality>
<ccts:ObjectClass>Contract</ccts:ObjectClass>
<ccts:PropertyTerm>Issue Time</ccts:PropertyTerm>
<ccts:RepresentationTerm>Time</ccts:RepresentationTerm>
<ccts:DataType>Time. Type</ccts:DataType>
</ccts:Component>
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="cbc:ContractTypeCode" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
<ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
<ccts:ComponentType>BBIE</ccts:ComponentType>
<ccts:DictionaryEntryName>Contract. Contract Type Code. Code</ccts:DictionaryEntryName>
<ccts:Definition>The type of Contract, expressed as a code.</ccts:Definition>
<ccts:Cardinality>0..1</ccts:Cardinality>
<ccts:ObjectClass>Contract</ccts:ObjectClass>
<ccts:PropertyTerm>Contract Type Code</ccts:PropertyTerm>
<ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
<ccts:DataType>Code. Type</ccts:DataType>
</ccts:Component>
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="cbc:ContractType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
<ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
<ccts:ComponentType>BBIE</ccts:ComponentType>
<ccts:DictionaryEntryName>Contract. Contract Type. Text</ccts:DictionaryEntryName>
<ccts:Definition>The type of Contract, expressed as text.</ccts:Definition>
<ccts:Cardinality>0..1</ccts:Cardinality>
<ccts:ObjectClass>Contract</ccts:ObjectClass>
<ccts:PropertyTerm>Contract Type</ccts:PropertyTerm>
<ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
<ccts:DataType>Text. Type</ccts:DataType>
</ccts:Component>
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="ValidityPeriod" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
<ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
<ccts:ComponentType>ASBIE</ccts:ComponentType>
<ccts:DictionaryEntryName>Contract. Validity_ Period. Period</ccts:DictionaryEntryName>
<ccts:Definition>An association to Validity Period.</ccts:Definition>
<ccts:Cardinality>0..1</ccts:Cardinality>
<ccts:ObjectClass>Contract</ccts:ObjectClass>
<ccts:PropertyTermQualifier>Validity</ccts:PropertyTermQualifier>
<ccts:PropertyTerm>Period</ccts:PropertyTerm>
<ccts:AssociatedObjectClass>Period</ccts:AssociatedObjectClass>
</ccts:Component>
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="ContractDocumentReference" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>
<ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
<ccts:ComponentType>ASBIE</ccts:ComponentType>
<ccts:DictionaryEntryName>Contract. Contract_ Document Reference. Document Reference</ccts:DictionaryEntryName>
<ccts:Definition>An associative reference to Contract Document.</ccts:Definition>
<ccts:Cardinality>0..n</ccts:Cardinality>
<ccts:ObjectClass>Contract</ccts:ObjectClass>
<ccts:PropertyTermQualifier>Contract</ccts:PropertyTermQualifier>
<ccts:PropertyTerm>Document Reference</ccts:PropertyTerm>
<ccts:AssociatedObjectClass>Document Reference</ccts:AssociatedObjectClass>
</ccts:Component>
</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
|

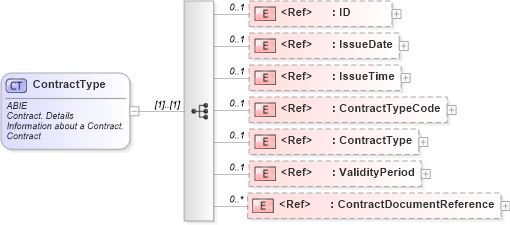

XSD Schema Diagram:
