Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: CountryIdentificationCodeType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:QualifiedDatatypes-2
Type: udt:CodeType
Containing Schema: UBL-QualifiedDatatypes-2.0.xsd
Abstract
Documentation:
Country Identification_ Code. Type 2.0 The set of countries of the world. Code Country Identification Derived from the ISO 3166-1-alpha-2 code elements used under the terms of the ISO policy stated at http://www.iso.org/iso/en/commcentre/pressreleases/2003/Ref871.html.

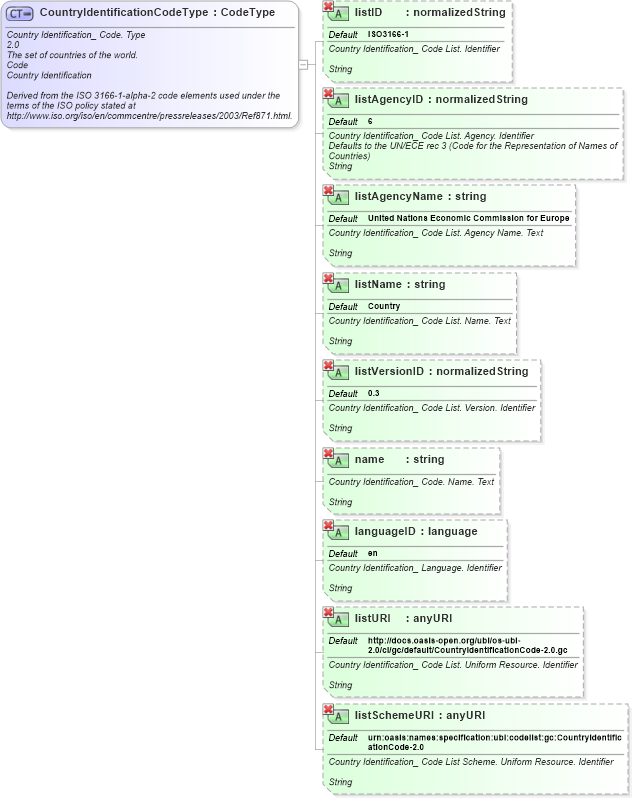

Collapse XSD Schema Diagram:
Drilldown into listSchemeURI in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listURI in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into languageID in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into name in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listVersionID in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listName in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listAgencyName in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listAgencyID in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listID in schema ubl-qualifieddatatypes-2_0_xsdXSD Diagram of CountryIdentificationCodeType in schema ubl-qualifieddatatypes-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="CountryIdentificationCodeType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:DictionaryEntryName>Country Identification_ Code. Type</ccts:DictionaryEntryName>
                <ccts:Version>2.0</ccts:Version>
                <ccts:Definition>The set of countries of the world.</ccts:Definition>
                <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                <ccts:QualifierTerm>Country Identification</ccts:QualifierTerm>
                <ccts:UniqueID>
                </ccts:UniqueID>
                <ccts:UsageRule>Derived from the ISO 3166-1-alpha-2 code elements used under the terms of the ISO policy stated at http://www.iso.org/iso/en/commcentre/pressreleases/2003/Ref871.html.</ccts:UsageRule>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:restriction base="udt:CodeType">
            <xsd:attribute name="listID" type="xsd:normalizedString" default="ISO3166-1" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Country Identification_ Code List. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listAgencyID" type="xsd:normalizedString" default="6" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Country Identification_ Code List. Agency. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">Defaults to the UN/ECE rec 3 (Code for the Representation of Names of Countries)</ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listAgencyName" type="xsd:string" default="United Nations Economic Commission for Europe" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Country Identification_ Code List. Agency Name. Text</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listName" type="xsd:string" default="Country" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Country Identification_ Code List. Name. Text</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listVersionID" type="xsd:normalizedString" default="0.3" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Country Identification_ Code List. Version. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="name" type="xsd:string" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Country Identification_ Code. Name. Text</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="languageID" type="xsd:language" default="en" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Country Identification_ Language. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listURI" type="xsd:anyURI" default="http://docs.oasis-open.org/ubl/os-ubl-2.0/cl/gc/default/CountryIdentificationCode-2.0.gc" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Country Identification_ Code List. Uniform Resource. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listSchemeURI" type="xsd:anyURI" default="urn:oasis:names:specification:ubl:codelist:gc:CountryIdentificationCode-2.0" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Country Identification_ Code List Scheme. Uniform Resource. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:restriction>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
listID qdt:listID ISO3166-1 Optional
listAgencyID qdt:listAgencyID 6 Optional
listAgencyName qdt:listAgencyName United Nations Economic Commission for Europe Optional
listName qdt:listName Country Optional
listVersionID qdt:listVersionID 0.3 Optional
name qdt:name Optional
languageID qdt:languageID en Optional
listURI qdt:listURI http://docs.oasis-open.org/ubl/os-ubl-2.0/cl/gc/default/CountryIdentificationCode-2.0.gc Optional
listSchemeURI qdt:listSchemeURI urn:oasis:names:specification:ubl:codelist:gc:CountryIdentificationCode-2.0 Optional
Collapse Derivation Tree:
Collapse References:
cbc:IdentificationCodeType
