Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: CurrencyCode
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonBasicComponents-2
Type: cbc:CurrencyCodeType
Containing Schema: UBL-CommonBasicComponents-2.0.xsd
Abstract

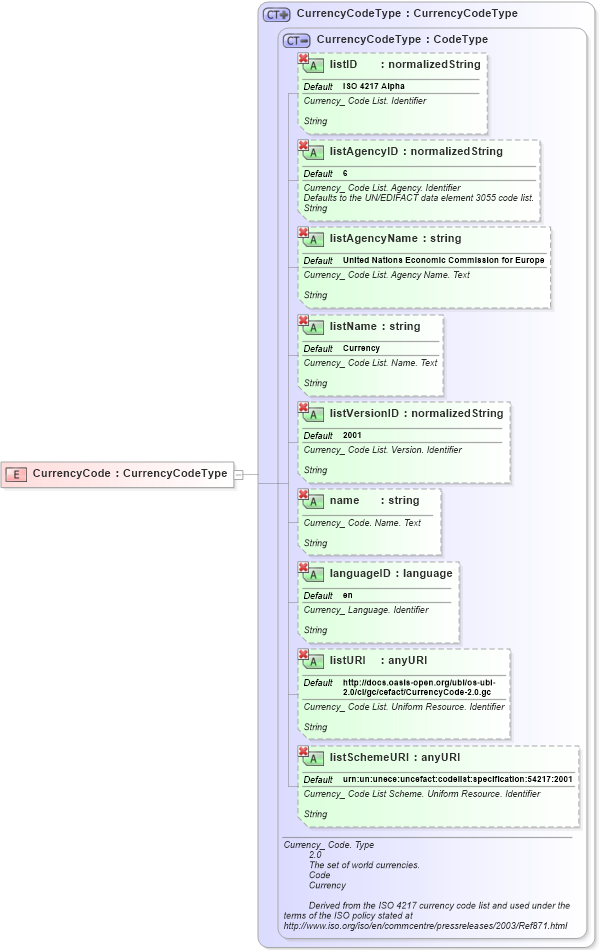

Collapse XSD Schema Diagram:
Drilldown into listSchemeURI in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listURI in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into languageID in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into name in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listVersionID in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listName in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listAgencyName in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listAgencyID in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listID in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into CurrencyCodeType in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into CurrencyCodeType in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of CurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="CurrencyCode" type="CurrencyCodeType" />
Collapse Child Attributes:
Name Type Default Value Use
listID qdt:listID ISO 4217 Alpha Optional
listAgencyID qdt:listAgencyID 6 Optional
listAgencyName qdt:listAgencyName United Nations Economic Commission for Europe Optional
listName qdt:listName Currency Optional
listVersionID qdt:listVersionID 2001 Optional
name qdt:name Optional
languageID qdt:languageID en Optional
listURI qdt:listURI http://docs.oasis-open.org/ubl/os-ubl-2.0/cl/gc/cefact/CurrencyCode-2.0.gc Optional
listSchemeURI qdt:listSchemeURI urn:un:unece:uncefact:codelist:specification:54217:2001 Optional
Collapse Derivation Tree:
