Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: CustomerPartyType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Customer Party. Details Information about the Customer Party. Customer Party

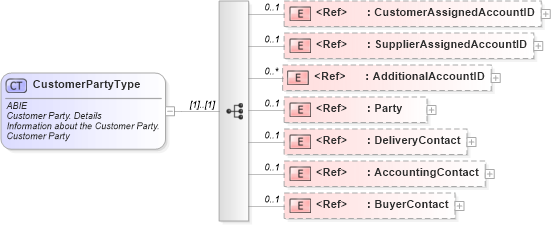

Collapse XSD Schema Diagram:
Drilldown into BuyerContact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingContact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DeliveryContact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Party in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalAccountID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into SupplierAssignedAccountID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomerAssignedAccountID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of CustomerPartyType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="CustomerPartyType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Customer Party. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about the Customer Party.</ccts:Definition>
                <ccts:ObjectClass>Customer Party</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:CustomerAssignedAccountID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Customer Party. Customer Assigned_ Account Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the Customer's account, assigned by the Customer itself.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Customer Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Customer Assigned</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Account Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:SupplierAssignedAccountID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Customer Party. Supplier Assigned_ Account Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the Customer's account, assigned by the Supplier.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Customer Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Supplier Assigned</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Account Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:AdditionalAccountID" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Customer Party. Additional_ Account Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the Customer's account, assigned by a third party.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Customer Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Account Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Party" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Customer Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Party.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Customer Party</ccts:ObjectClass>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DeliveryContact" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Customer Party. Delivery_ Contact. Contact</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Delivery Contact.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Customer Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Delivery</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Contact</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Contact</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AccountingContact" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Customer Party. Accounting_ Contact. Contact</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Accounting Contact (Customer).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Customer Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Accounting</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Contact</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Contact</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="BuyerContact" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Customer Party. Buyer_ Contact. Contact</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Buyer Contact.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Customer Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Buyer</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Contact</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Contact</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CustomerAssignedAccountID cbc:CustomerAssignedAccountID 0 1
SupplierAssignedAccountID cbc:SupplierAssignedAccountID 0 1
AdditionalAccountID cbc:AdditionalAccountID 0 unbounded
Party cac:Party 0 1
DeliveryContact cac:DeliveryContact 0 1
AccountingContact cac:AccountingContact 0 1
BuyerContact cac:BuyerContact 0 1
Collapse Derivation Tree:
Collapse References:
cac:AccountingCustomerParty, cac:BuyerCustomerParty, cac:ContractorCustomerParty, cac:CustomerParty, cac:DeliveryCustomerParty, cac:OriginatorCustomerParty
