Definition Type: ComplexType
Name: DeliveryTermsType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Delivery Terms. Details Information about Delivery Terms. Delivery Terms

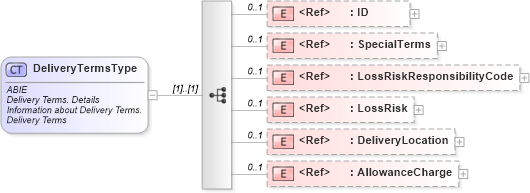

Collapse XSD Schema Diagram:
Drilldown into AllowanceCharge in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DeliveryLocation in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LossRisk in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LossRiskResponsibilityCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into SpecialTerms in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of DeliveryTermsType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="DeliveryTermsType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Delivery Terms. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about Delivery Terms.</ccts:Definition>
                <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Delivery Terms. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the Delivery Terms.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>CIF, FOB, or EXW from the INCOTERMS Terms of Delivery. (2000 version preferred.)</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:SpecialTerms" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Delivery Terms. Special_ Terms. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>A description of special conditions relating to the Delivery Terms.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Special</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Terms</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:LossRiskResponsibilityCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Delivery Terms. Loss Risk Responsibility Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the responsibility for loss risk in the context of the Delivery Terms, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
                        <ccts:PropertyTerm>Loss Risk Responsibility Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:LossRisk" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Delivery Terms. Loss Risk. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>A description of the loss risk in the context of the Delivery Terms.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
                        <ccts:PropertyTerm>Loss Risk</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DeliveryLocation" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Delivery Terms. Delivery_ Location. Location</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Location, e.g., a port.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Delivery</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Location</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Location</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AllowanceCharge" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Delivery Terms. Allowance Charge</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Allowance Charge.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Delivery Terms</ccts:ObjectClass>
                        <ccts:PropertyTerm>Allowance Charge</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Allowance Charge</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
SpecialTerms cbc:SpecialTerms 0 1
LossRiskResponsibilityCode cbc:LossRiskResponsibilityCode 0 1
LossRisk cbc:LossRisk 0 1
DeliveryLocation cac:DeliveryLocation 0 1
AllowanceCharge cac:AllowanceCharge 0 1
Collapse Derivation Tree:
Collapse References:
cac:DeliveryTerms
