Definition Type: Element
Name: DespatchSupplierParty
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:SupplierPartyType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

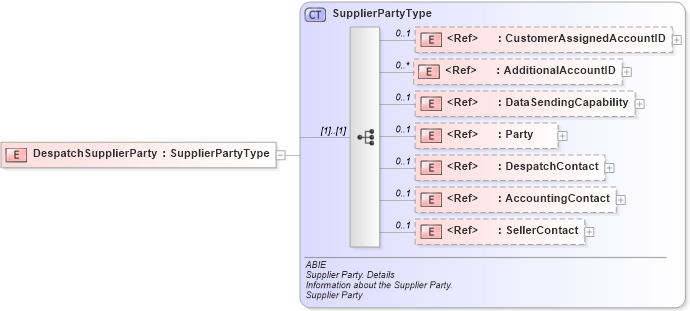

Collapse XSD Schema Diagram:
Drilldown into SellerContact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingContact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DespatchContact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Party in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DataSendingCapability in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AdditionalAccountID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomerAssignedAccountID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into SupplierPartyType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of DespatchSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="DespatchSupplierParty" type="SupplierPartyType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CustomerAssignedAccountID cbc:CustomerAssignedAccountID 0 1
AdditionalAccountID cbc:AdditionalAccountID 0 unbounded
DataSendingCapability cbc:DataSendingCapability 0 1
Party cac:Party 0 1
DespatchContact cac:DespatchContact 0 1
AccountingContact cac:AccountingContact 0 1
SellerContact cac:SellerContact 0 1
Collapse Derivation Tree:
