Definition Type: ComplexType
Name: DespatchType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Despatch. Details Information about Despatch. Despatch

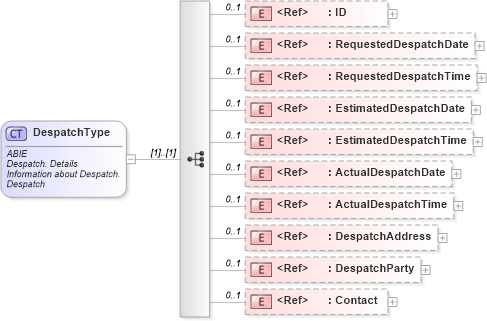

Collapse XSD Schema Diagram:
Drilldown into Contact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DespatchParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DespatchAddress in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ActualDespatchTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ActualDespatchDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into EstimatedDespatchTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into EstimatedDespatchDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into RequestedDespatchTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into RequestedDespatchDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of DespatchType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="DespatchType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Despatch. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about Despatch.</ccts:Definition>
                <ccts:ObjectClass>Despatch</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The identifier for the Delivery.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:RequestedDespatchDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch. Requested_ Despatch Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The despatch (pick-up) date requested by the buyer.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Requested</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Despatch Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:RequestedDespatchTime" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch. Requested_ Despatch Time. Time</ccts:DictionaryEntryName>
                        <ccts:Definition>The despatch (pick-up) time requested by the buyer.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Requested</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Despatch Time</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Time</ccts:RepresentationTerm>
                        <ccts:DataType>Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:EstimatedDespatchDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch. Estimated_ Despatch Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The despatch (pick-up) date estimated by the seller or Despatch.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Estimated</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Despatch Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:EstimatedDespatchTime" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch. Estimated_ Despatch Time. Time</ccts:DictionaryEntryName>
                        <ccts:Definition>The despatch (pick-up) time estimated by the seller or Despatch.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Estimated</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Despatch Time</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Time</ccts:RepresentationTerm>
                        <ccts:DataType>Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ActualDespatchDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch. Actual_ Despatch Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The actual despatch (pick-up) date.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Actual</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Despatch Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ActualDespatchTime" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch. Actual_ Despatch Time. Time</ccts:DictionaryEntryName>
                        <ccts:Definition>The actual despatch (pick-up) time.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Actual</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Despatch Time</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Time</ccts:RepresentationTerm>
                        <ccts:DataType>Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DespatchAddress" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch. Despatch_ Address. Address</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Despatch Address.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Despatch</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Address</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Address</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DespatchParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch. Despatch_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>The party who despatched the delivery.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Despatch</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Contact" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch. Contact</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Contact.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch</ccts:ObjectClass>
                        <ccts:PropertyTerm>Contact</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Contact</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
RequestedDespatchDate cbc:RequestedDespatchDate 0 1
RequestedDespatchTime cbc:RequestedDespatchTime 0 1
EstimatedDespatchDate cbc:EstimatedDespatchDate 0 1
EstimatedDespatchTime cbc:EstimatedDespatchTime 0 1
ActualDespatchDate cbc:ActualDespatchDate 0 1
ActualDespatchTime cbc:ActualDespatchTime 0 1
DespatchAddress cac:DespatchAddress 0 1
DespatchParty cac:DespatchParty 0 1
Contact cac:Contact 0 1
Collapse Derivation Tree:
Collapse References:
cac:Despatch
