Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: DimensionType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Dimension. Details Information about a measurable dimension of an item. Dimension
Collapse XSD Schema Diagram:

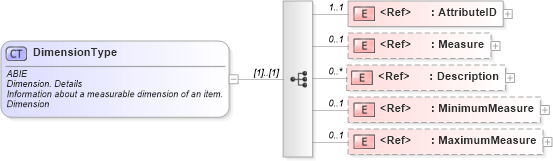

Drilldown into MaximumMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MinimumMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Measure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AttributeID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of DimensionType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="DimensionType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Dimension. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about a measurable dimension of an item.</ccts:Definition>
                <ccts:ObjectClass>Dimension</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:AttributeID" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Dimension. Attribute Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the attribute to which the measure applies.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Dimension</ccts:ObjectClass>
                        <ccts:PropertyTerm>Attribute Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Measure" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Dimension. Measure</ccts:DictionaryEntryName>
                        <ccts:Definition>The measurement value.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Dimension</ccts:ObjectClass>
                        <ccts:PropertyTerm>Measure</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Measure</ccts:RepresentationTerm>
                        <ccts:DataType>Measure. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Description" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Dimension. Description. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>A description of the attribute or measurement of the attribute.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Dimension</ccts:ObjectClass>
                        <ccts:PropertyTerm>Description</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:MinimumMeasure" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Dimension. Minimum_ Measure. Measure</ccts:DictionaryEntryName>
                        <ccts:Definition>The minimum value in a range of measurement.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Dimension</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Minimum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Measure</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Measure</ccts:RepresentationTerm>
                        <ccts:DataType>Measure. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:MaximumMeasure" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Dimension. Maximum_ Measure. Measure</ccts:DictionaryEntryName>
                        <ccts:Definition>The maximum value in a range of measurement.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Dimension</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Maximum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Measure</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Measure</ccts:RepresentationTerm>
                        <ccts:DataType>Measure. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AttributeID cbc:AttributeID 1 1
Measure cbc:Measure 0 1
Description cbc:Description 0 unbounded
MinimumMeasure cbc:MinimumMeasure 0 1
MaximumMeasure cbc:MaximumMeasure 0 1
Collapse Derivation Tree:
Collapse References:
cac:Dimension, cac:MeasurementDimension
