Definition Type: ComplexType
Name: HazardousGoodsTransitType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Hazardous Goods Transit. Details Information about Hazardous Goods Transit. Hazardous Goods Transit

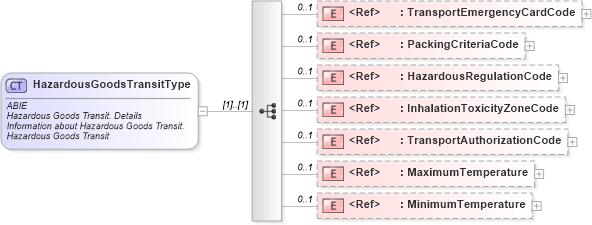

Collapse XSD Schema Diagram:
Drilldown into MinimumTemperature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into MaximumTemperature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TransportAuthorizationCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into InhalationToxicityZoneCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into HazardousRegulationCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PackingCriteriaCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TransportEmergencyCardCode in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of HazardousGoodsTransitType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="HazardousGoodsTransitType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Hazardous Goods Transit. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about Hazardous Goods Transit.</ccts:Definition>
                <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:TransportEmergencyCardCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Goods Transit. Transport Emergency Card Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The identifier for a transport emergency card, describing the actions to be taken in an emergency in transporting the Hazardous Goods. May be the identity number of a hazardous emergency response plan assigned by the appropriate authority.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Transport Emergency Card Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>TREM card</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PackingCriteriaCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Goods Transit. Packing Criteria Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>A code identifying the packaging requirement for the transportation of the Hazardous Goods as assigned by IATA/IMDB/ADR/RID etc.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Packing Criteria Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Packing Group</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:HazardousRegulationCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Goods Transit. Hazardous Regulation Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The identifier for a set of legal regulations that govern the transportation of the Hazardous Goods, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Hazardous Regulation Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:InhalationToxicityZoneCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Goods Transit. Inhalation Toxicity Zone Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the Inhalation Toxicity Hazard Zone for the Hazardous Goods, as defined by the US Department of Transportation, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Inhalation Toxicity Zone Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TransportAuthorizationCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Goods Transit. Transport Authorization Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Code specifying the authorization for the transportation of hazardous cargo.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                        <ccts:PropertyTerm>Transport Authorization Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Permission for Transport</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="MaximumTemperature" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Goods Transit. Maximum_ Temperature. Temperature</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Maximum Temperature (at which the Hazardous Goods can be safely transported).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Maximum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Temperature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Temperature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="MinimumTemperature" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Hazardous Goods Transit. Minimum_ Temperature. Temperature</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Minimum Temperature (at which the Hazardous Goods can be safely transported).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Hazardous Goods Transit</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Minimum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Temperature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Temperature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransportEmergencyCardCode cbc:TransportEmergencyCardCode 0 1
PackingCriteriaCode cbc:PackingCriteriaCode 0 1
HazardousRegulationCode cbc:HazardousRegulationCode 0 1
InhalationToxicityZoneCode cbc:InhalationToxicityZoneCode 0 1
TransportAuthorizationCode cbc:TransportAuthorizationCode 0 1
MaximumTemperature cac:MaximumTemperature 0 1
MinimumTemperature cac:MinimumTemperature 0 1
Collapse Derivation Tree:
Collapse References:
cac:HazardousGoodsTransit
