Definition Type: Element
Name: Item
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:ItemType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

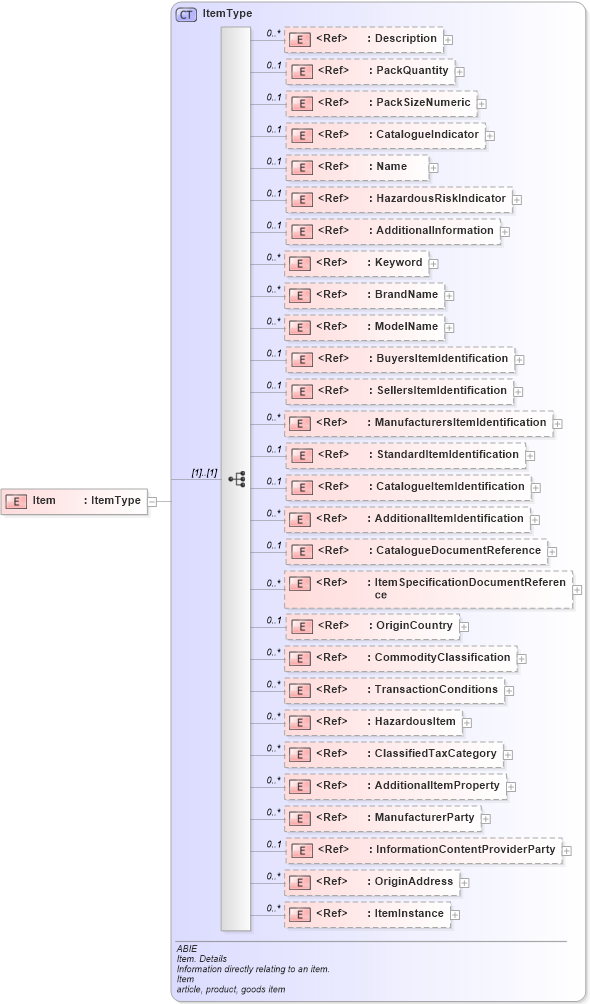

Collapse XSD Schema Diagram:
Drilldown into ItemInstance in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OriginAddress in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into InformationContentProviderParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ManufacturerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalItemProperty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ClassifiedTaxCategory in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into HazardousItem in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TransactionConditions in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CommodityClassification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OriginCountry in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ItemSpecificationDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CatalogueDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalItemIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CatalogueItemIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into StandardItemIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ManufacturersItemIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SellersItemIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into BuyersItemIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ModelName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into BrandName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Keyword in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AdditionalInformation in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into HazardousRiskIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Name in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CatalogueIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PackSizeNumeric in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PackQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ItemType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of Item in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="Item" type="ItemType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description cbc:Description 0 unbounded
PackQuantity cbc:PackQuantity 0 1
PackSizeNumeric cbc:PackSizeNumeric 0 1
CatalogueIndicator cbc:CatalogueIndicator 0 1
Name cbc:Name 0 1
HazardousRiskIndicator cbc:HazardousRiskIndicator 0 1
AdditionalInformation cbc:AdditionalInformation 0 1
Keyword cbc:Keyword 0 unbounded
BrandName cbc:BrandName 0 unbounded
ModelName cbc:ModelName 0 unbounded
BuyersItemIdentification cac:BuyersItemIdentification 0 1
SellersItemIdentification cac:SellersItemIdentification 0 1
ManufacturersItemIdentification cac:ManufacturersItemIdentification 0 unbounded
StandardItemIdentification cac:StandardItemIdentification 0 1
CatalogueItemIdentification cac:CatalogueItemIdentification 0 1
AdditionalItemIdentification cac:AdditionalItemIdentification 0 unbounded
CatalogueDocumentReference cac:CatalogueDocumentReference 0 1
ItemSpecificationDocumentReference cac:ItemSpecificationDocumentReference 0 unbounded
OriginCountry cac:OriginCountry 0 1
CommodityClassification cac:CommodityClassification 0 unbounded
TransactionConditions cac:TransactionConditions 0 unbounded
HazardousItem cac:HazardousItem 0 unbounded
ClassifiedTaxCategory cac:ClassifiedTaxCategory 0 unbounded
AdditionalItemProperty cac:AdditionalItemProperty 0 unbounded
ManufacturerParty cac:ManufacturerParty 0 unbounded
InformationContentProviderParty cac:InformationContentProviderParty 0 1
OriginAddress cac:OriginAddress 0 unbounded
ItemInstance cac:ItemInstance 0 unbounded
Collapse Derivation Tree:
