Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: ItemInstanceType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Item Instance. Details Information about a specific instance of an item. Item Instance

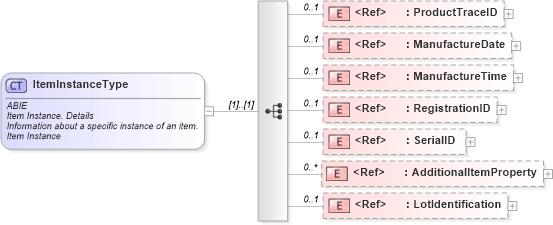

Collapse XSD Schema Diagram:
Drilldown into LotIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalItemProperty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SerialID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into RegistrationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ManufactureTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ManufactureDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProductTraceID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of ItemInstanceType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="ItemInstanceType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Item Instance. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about a specific instance of an item.</ccts:Definition>
                <ccts:ObjectClass>Item Instance</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ProductTraceID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Instance. Product Trace_ Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier used for tracing the item, such as the EPC number used in RFID.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Instance</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Product Trace</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ManufactureDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Instance. Manufacture Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The date of manufacture of the Item Instance.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Instance</ccts:ObjectClass>
                        <ccts:PropertyTerm>Manufacture Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ManufactureTime" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Instance. Manufacture Time. Time</ccts:DictionaryEntryName>
                        <ccts:Definition>The time of manufacture of the Item Instance.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Instance</ccts:ObjectClass>
                        <ccts:PropertyTerm>Manufacture Time</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Time</ccts:RepresentationTerm>
                        <ccts:DataType>Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:RegistrationID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Instance. Registration Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The registration identifier of the Item Instance.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Instance</ccts:ObjectClass>
                        <ccts:PropertyTerm>Registration Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>car registration or licensing number</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:SerialID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Instance. Serial Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The serial number of the Item Instance.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Instance</ccts:ObjectClass>
                        <ccts:PropertyTerm>Serial Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>chassis number of a car</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AdditionalItemProperty" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Instance. Additional_ Item Property. Item Property</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Additional Item Property.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item Instance</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Property</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Property</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="LotIdentification" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Instance. Lot Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item instance with its lot identification (the identification that allows recall of the item if necessary).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Instance</ccts:ObjectClass>
                        <ccts:PropertyTerm>Lot Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Lot Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProductTraceID cbc:ProductTraceID 0 1
ManufactureDate cbc:ManufactureDate 0 1
ManufactureTime cbc:ManufactureTime 0 1
RegistrationID cbc:RegistrationID 0 1
SerialID cbc:SerialID 0 1
AdditionalItemProperty cac:AdditionalItemProperty 0 unbounded
LotIdentification cac:LotIdentification 0 1
Collapse Derivation Tree:
Collapse References:
cac:ItemInstance
