Definition Type: ComplexType
Name: ItemPropertyType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Item Property. Details Information about specific Item Properties. Item Property

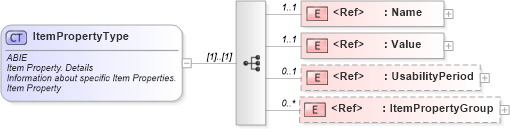

Collapse XSD Schema Diagram:
Drilldown into ItemPropertyGroup in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into UsabilityPeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Value in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Name in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of ItemPropertyType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="ItemPropertyType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Item Property. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about specific Item Properties.</ccts:Definition>
                <ccts:ObjectClass>Item Property</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:Name" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Property. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>The name of the Item Property.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Property</ccts:ObjectClass>
                        <ccts:PropertyTerm>Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                        <ccts:Examples>"Energy Rating", "Collar Size", "Fat Content"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Value" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Property. Value. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>The Item Property value.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Property</ccts:ObjectClass>
                        <ccts:PropertyTerm>Value</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:Examples>"100 watts", "15 European", "20% +/- 5%"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="UsabilityPeriod" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Property. Usability_ Period. Period</ccts:DictionaryEntryName>
                        <ccts:Definition>The period for which the Item Property is valid.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Property</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Usability</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Period</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Period</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ItemPropertyGroup" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Property. Item Property Group</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Item Property Group.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item Property</ccts:ObjectClass>
                        <ccts:PropertyTerm>Item Property Group</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Property Group</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name cbc:Name 1 1
Value cbc:Value 1 1
UsabilityPeriod cac:UsabilityPeriod 0 1
ItemPropertyGroup cac:ItemPropertyGroup 0 unbounded
Collapse Derivation Tree:
Collapse References:
cac:AdditionalItemProperty, cac:ItemProperty
