Definition Type: ComplexType
Name: PeriodType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Period. Details Information about a period of time. Period

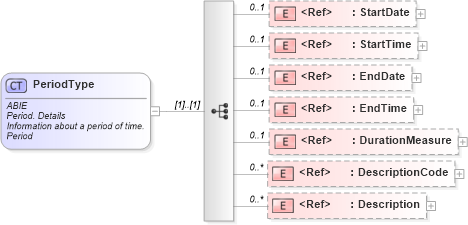

Collapse XSD Schema Diagram:
Drilldown into Description in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DescriptionCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DurationMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into EndTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into EndDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into StartTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into StartDate in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of PeriodType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="PeriodType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Period. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about a period of time.</ccts:Definition>
                <ccts:ObjectClass>Period</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:StartDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Period. Start Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The start date of the period.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Period</ccts:ObjectClass>
                        <ccts:PropertyTerm>Start Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:StartTime" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Period. Start Time. Time</ccts:DictionaryEntryName>
                        <ccts:Definition>The start time of the period.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Period</ccts:ObjectClass>
                        <ccts:PropertyTerm>Start Time</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Time</ccts:RepresentationTerm>
                        <ccts:DataType>Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:EndDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Period. End Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The end date of the period.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Period</ccts:ObjectClass>
                        <ccts:PropertyTerm>End Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:EndTime" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Period. End Time. Time</ccts:DictionaryEntryName>
                        <ccts:Definition>The end time of the period.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Period</ccts:ObjectClass>
                        <ccts:PropertyTerm>End Time</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Time</ccts:RepresentationTerm>
                        <ccts:DataType>Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:DurationMeasure" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Period. Duration. Measure</ccts:DictionaryEntryName>
                        <ccts:Definition>The duration of a period, expressed as a code; ISO 8601.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Period</ccts:ObjectClass>
                        <ccts:PropertyTerm>Duration</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Measure</ccts:RepresentationTerm>
                        <ccts:DataType>Measure. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:DescriptionCode" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Period. Description Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>A description of the period, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Period</ccts:ObjectClass>
                        <ccts:PropertyTerm>Description Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Description" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Period. Description. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>A description of the period.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Period</ccts:ObjectClass>
                        <ccts:PropertyTerm>Description</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
StartDate cbc:StartDate 0 1
StartTime cbc:StartTime 0 1
EndDate cbc:EndDate 0 1
EndTime cbc:EndTime 0 1
DurationMeasure cbc:DurationMeasure 0 1
DescriptionCode cbc:DescriptionCode 0 unbounded
Description cbc:Description 0 unbounded
Collapse Derivation Tree:
Collapse References:
cac:EstimatedDeliveryPeriod, cac:InvoicePeriod, cac:LineValidityPeriod, cac:PenaltyPeriod, cac:Period, cac:PromisedDeliveryPeriod, cac:ReminderPeriod, cac:RequestedDeliveryPeriod, cac:SettlementPeriod, cac:StatementPeriod, cac:TransitPeriod, cac:UsabilityPeriod, cac:ValidityPeriod, cac:WarrantyValidityPeriod
